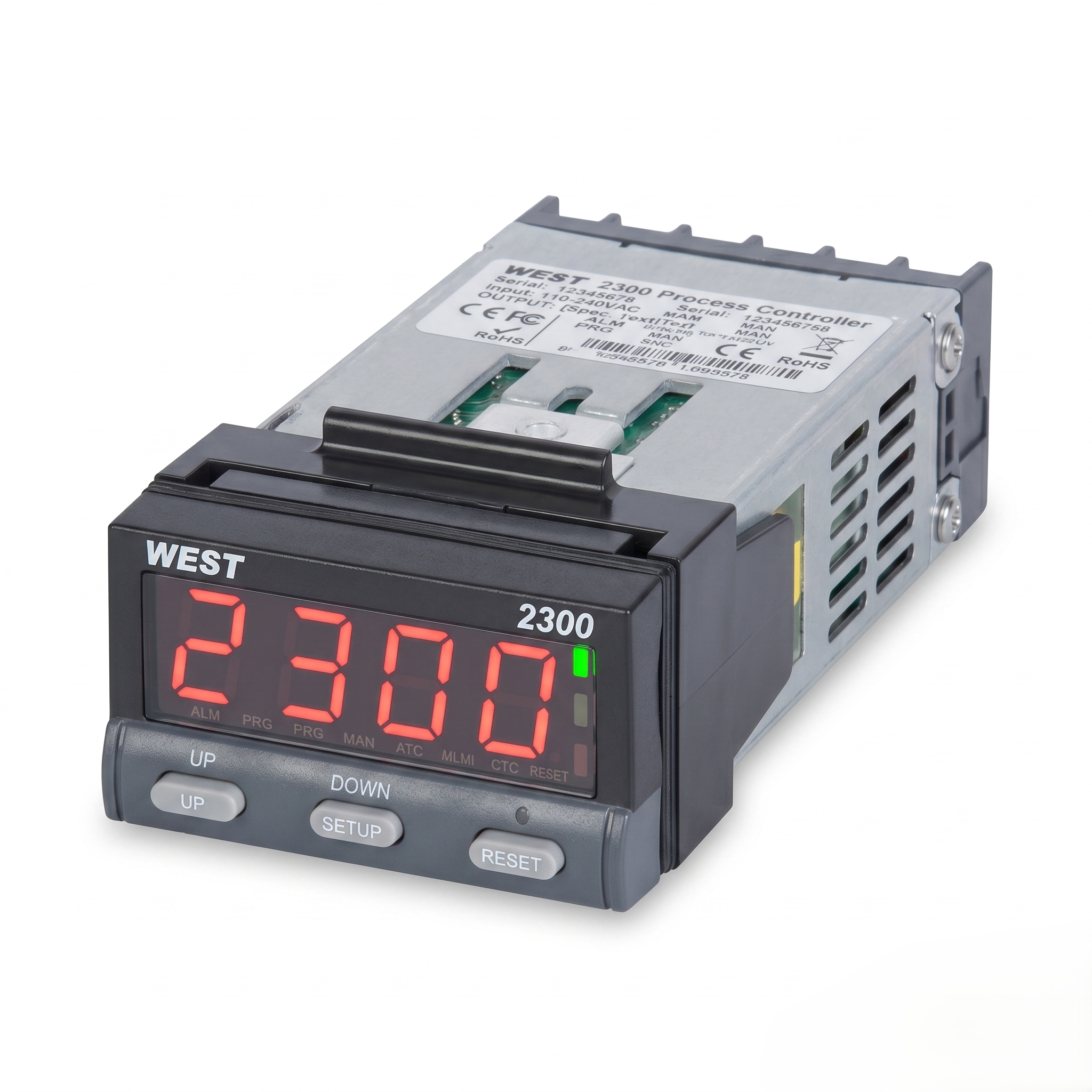

Introducing the West N2300 Single Loop Controller, a compact yet powerful solution designed for straightforward operation and precise control in a variety of industrial applications. With its slim 1/32 DIN package measuring 25mm x 49mm x 100mm, the N2300 offers the largest 4-digit red/green digital display in its class, ensuring clear and easy-to-read process information.
Equipped with versatile input options, the N2300 accepts thermocouple inputs (J, T, K, N, B, R, S), PT100 3-wire inputs, and DC linear mA/mVdc inputs, providing compatibility with a wide range of sensors and process variables.
Featuring PID control with auto-tuning capability, the N2300 offers hands-free operation for precise control, with manual override tune capability available for specialized applications. The controller utilizes solid-state relay (SSR) technology for primary control and alarming, ensuring reliable and accurate performance.
With up to 3 outputs available, including relay and SSR driver (SSd), the N2300 provides flexible control options to suit various process requirements. Additionally, an optional second alarm relay or RS-485 communication is available for enhanced functionality and integration with existing control systems.
Powered by a universal power supply ranging from 90 to 264V AC, 12-24V AC, or 12-30V DC, the N2300 ensures compatibility with different power sources and environments. Its communication capabilities include RS485 Serial communication using the Modbus® protocol, enabling seamless connectivity and communication with other devices.
Built to withstand harsh industrial environments, the N2300 boasts an IP65 panel sealing rating, providing protection against dust, moisture, and other environmental factors. Additionally, it holds certifications including CE and cULus, ensuring compliance with industry standards and regulations.
With its simple and intuitive operation, precise control capabilities, and robust construction, the West N2300 Single Loop Controller offers reliable performance and peace of mind in industrial process control applications.
