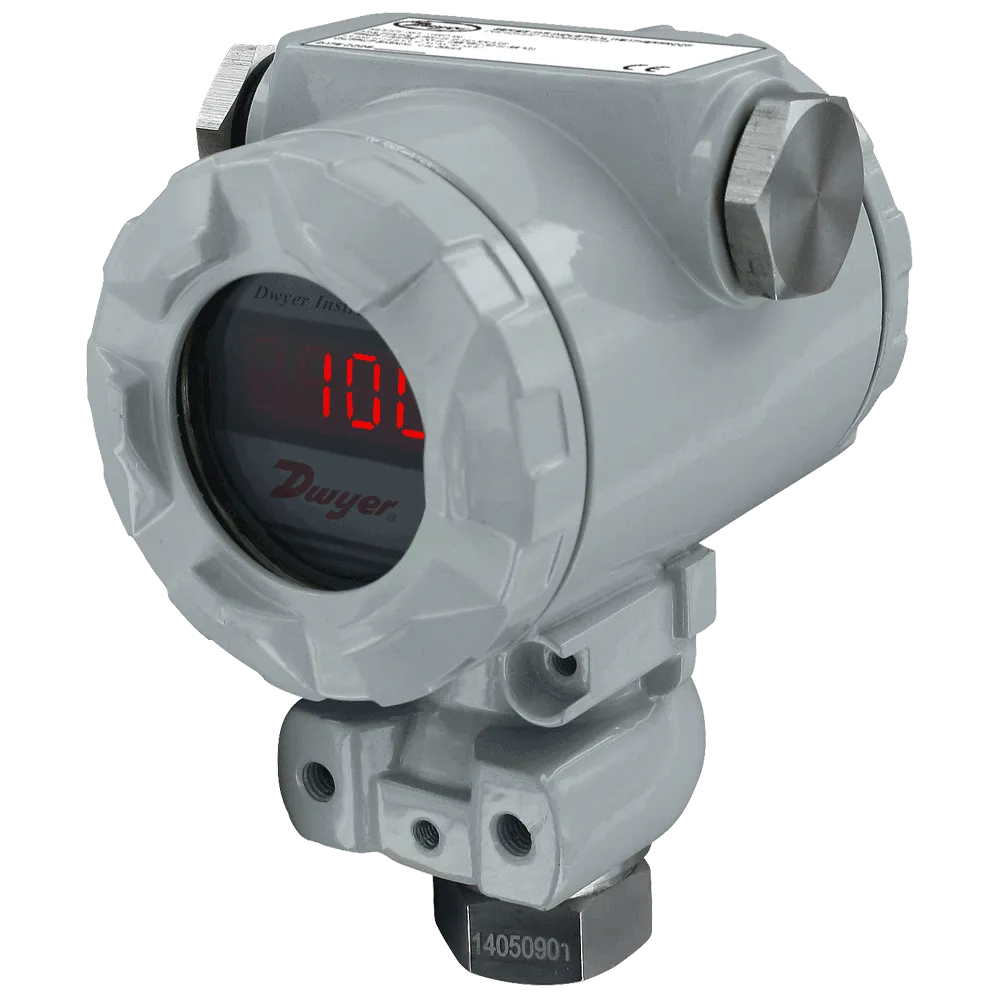

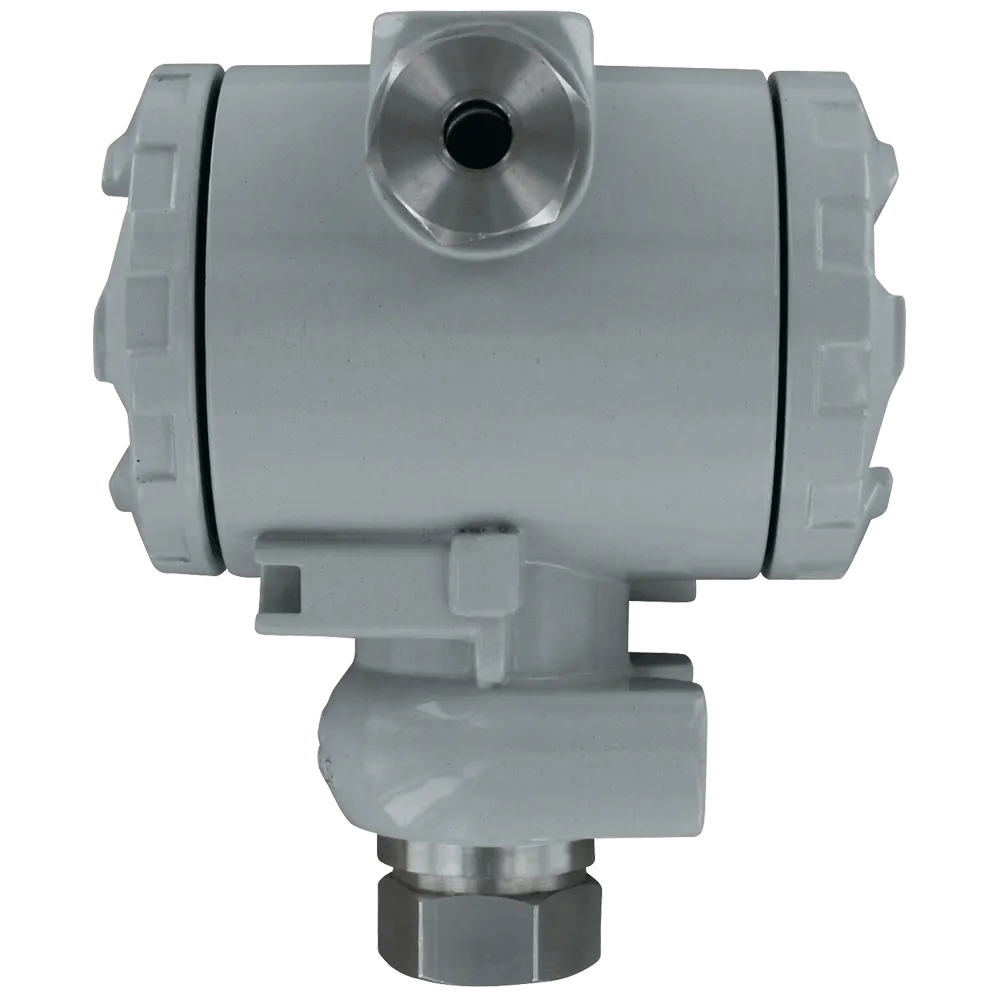

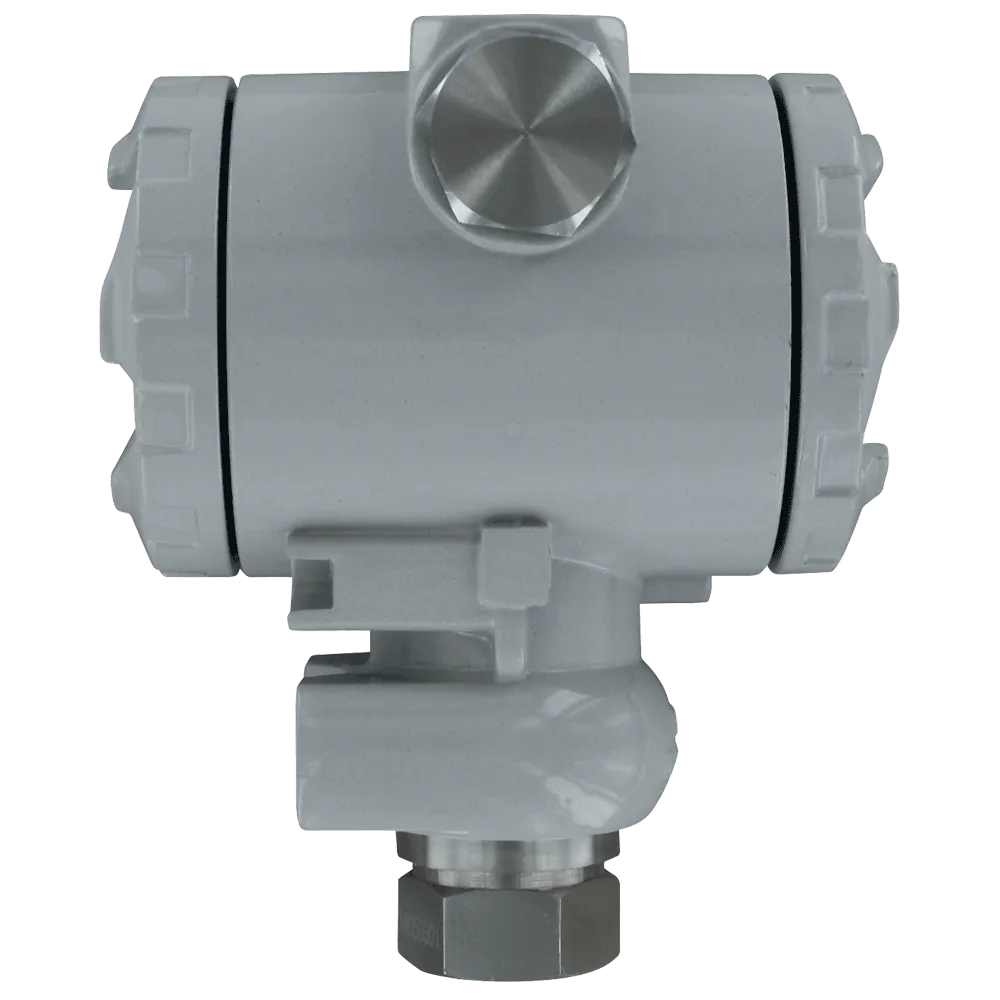

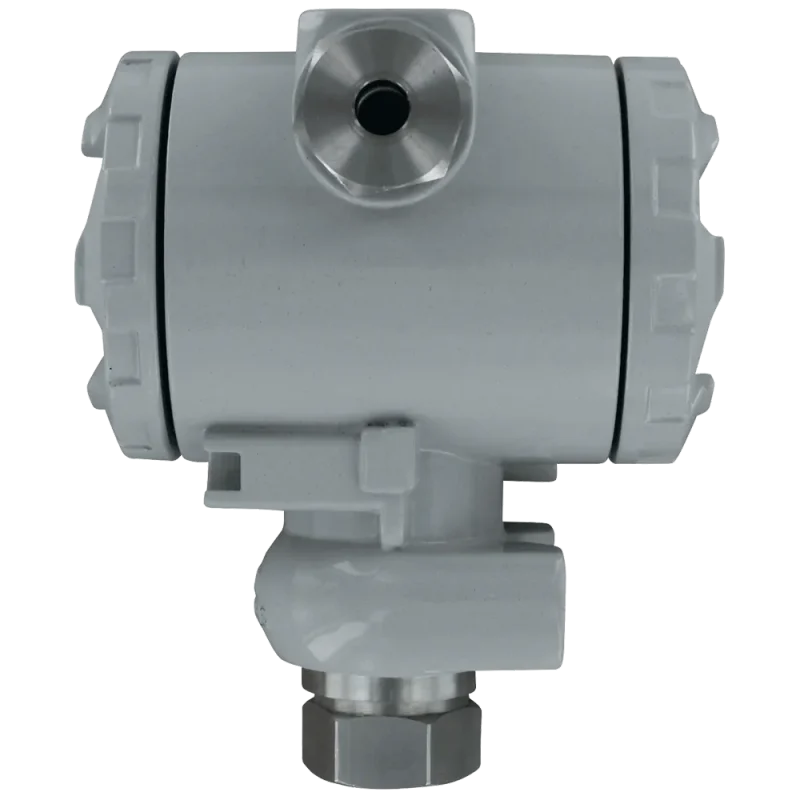

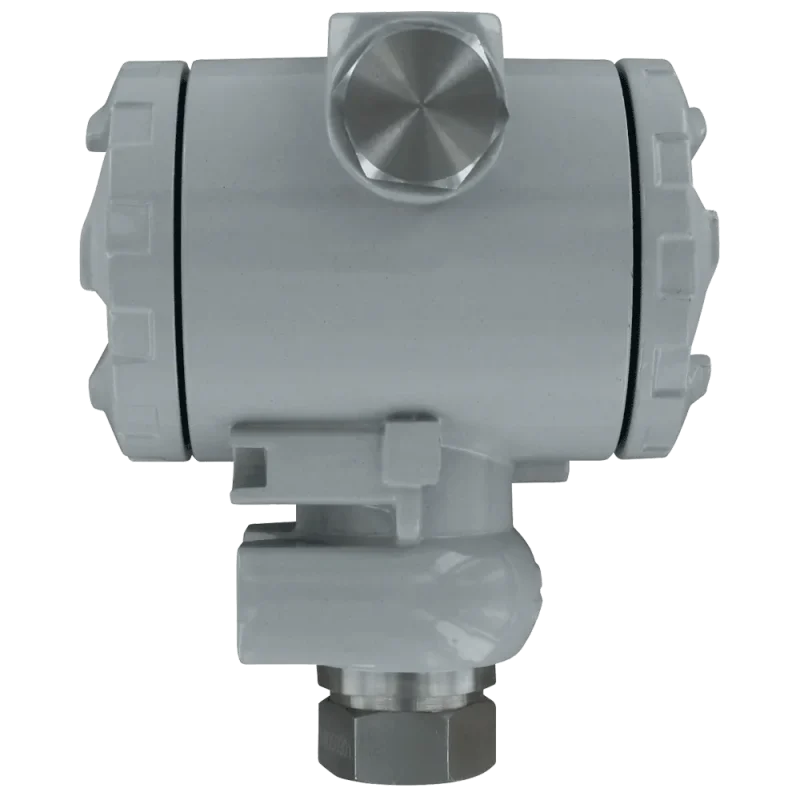

Dwyer Series IWP Industrial Weatherproof Pressure Transmitter

Part Number: Series IWP Categories: , ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084

The Series IWP Pressure Transmitter provides an exceptional value solution to pressure measurement in industrial conditions requiring high-performance, stability and long service life. The precise operation under dirty and wet conditions, make the Series IWP an ideal choice for petroleum, chemical and metallurgical industry applications.

Calibration Option available under Accessories.

Product Applications

  • Harsh industrial environments
  • Process
  • Chemical
  • Petroleum
  • Metallurgica

Service : Gases and liquids compatible with wetted materials.

Wetted Materials : 304 and 316 stainless steel.

Accuracy : 0.5% FS.

Stability : <0.2% FS per year.

Temperature Limits : -22 to 203°F (-30 to 95°C).

Compensated Temperature Limits : 32 to 158°F (0 to 70°C).

Pressure Limits : 1.5 x pressure range.

Temperature Coefficient : 0.3% F.S. per 10°C.

Power Requirements : 12 to 36 VDC.

Output Signal : 4 to 20mA.

Loop Resistance : 1200 Ω max.

Electrical Conduit Connection : 1/2″ female NPT.

Process Connection : 1/2″ female NPT.

Enclosure Rating : IP65.

Agency Approvals : CE.

  • Rugged, weather-proof design supports use in harsh environments

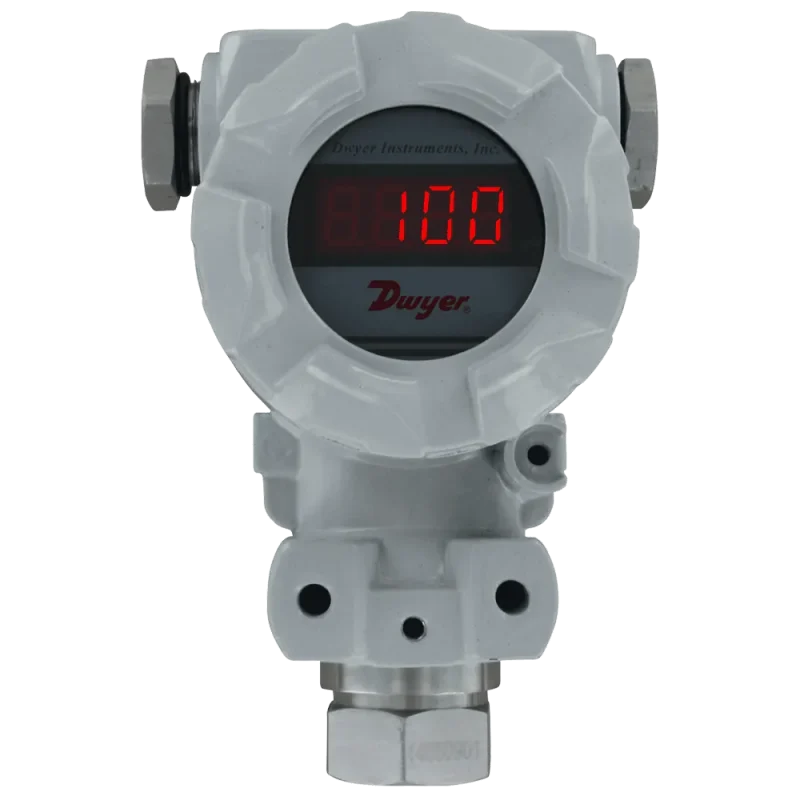

  • 4 digit LED display and 4 to 20 mA output
  • Durable cast-aluminum shell securely protects the high-quality circuitry from harsh industrial surroundings
  • Long-term stability and reliability in environmentally challenging conditions
  • Built for industrial processes such as petroleum, chemical and metallurgy but at a value price-point compared to other similar products.
