Dwyer Series 616D Differential Pressure Transmitter

Part Number: Series 616D Categories: , ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084

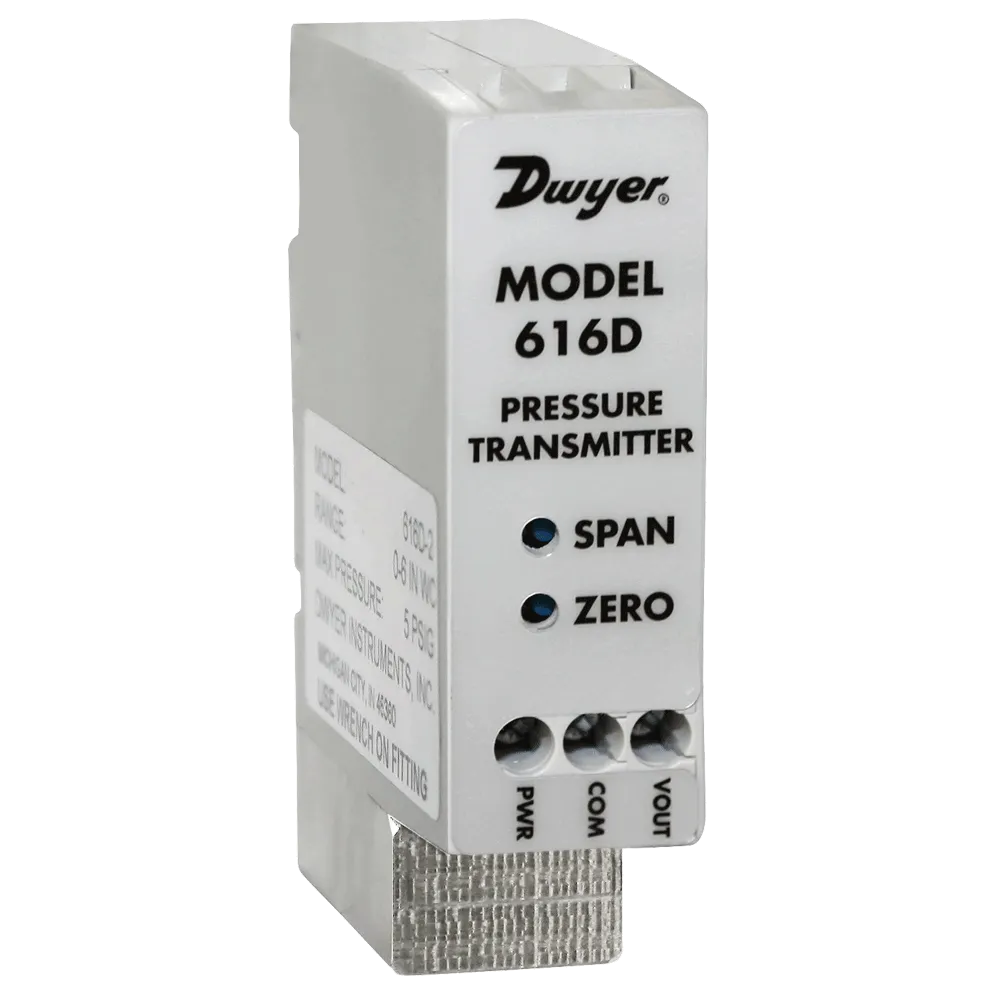

The Dwyer Series 616D Differential Pressure Transmitter senses the pressure of air and compatible gases and sends a standard 4 to 20 mA or 0 to 10 VDC output signal. The 616D enclosure is specifically designed to mount on a 35 mm DIN rail in a panel. This mounting style allows for several units to be mounted closely together reducing required space. The span and zero controls are for use when checking calibration. They are not intended for re-ranging. Versatile circuit design enables operation in 2-wire current loops.

Product Applications

  • Air handlers
  • Duct pressure
  • Variable air volume
  • Filter monitoring

Service : Air and non-combustible, compatible gases.

Wetted Materials : Consult factory.

Accuracy : ±0.25 FS @ 77°F (25°C).

Thermal Effect : ±0.02% FS/°F (0.036% FS/°C).

Stability : ±1% FS/yr.

Temperature Limits : 14 to 185°F (-10 to 85°C).

Pressure Limits : See chart on catalog page.

Power Requirements : 10 to 35 VDC (2-wire); 17 to 36 VDC, or isolated 21.6 to 33 VAC (3-wire).

Output Signal : 4 to 20 mA (2-wire); 0 to 10 VDC (3-wire).

Zero and Span Adjustments : Push buttons.

Loop Resistance : Current output: 0 to 1250 Ω max; Voltage output: Load resistance 1 kΩ min.

Current Consumption : 40 mA max.

Electrical Connections : Screw-type terminal block.

Process Connections : 1/8″ female NPT. Accessories included are 2 barbed fittings for 1/8″ (3.12 mm) and 3/16″ (4.77 mm) ID rubber or vinyl tubing.

Mounting Orientation : Vertical, on a 1.378″ (35 mm) DIN rail.

Weight : 4.8 oz (136 g).

Agency Approvals : CE.

  • Simple calibration push-buttons to set zero and span
  • Cost effective and compact device suitable for OEM applications where space, simplicity, and value are key
