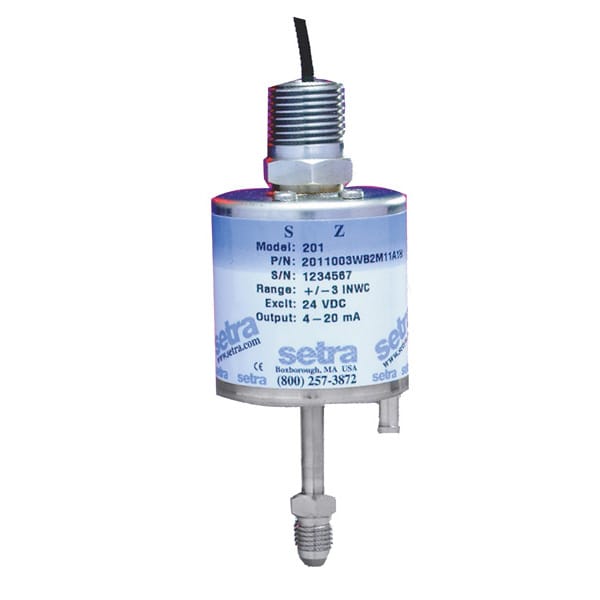

Setra 201 Very Low Differential Pressure Transducer

  • Very low pressure down to 1kpa
  • Low Full-Scale Range
  • All-Welded Construction
  • No O-Rings
  • Wide Compensated Operating Temp.
  • High Overpressure of 45 PSI
  • Can be used for Gauge or Differential Pressure Measurements
  • Meets CE Conformance Standards

The Setra 201 is a high-precision, low-cost pressure sensor for measuring very low gauge pressure differentials. The product’s leak-free design with all-welded, O-ring-free construction is ideal for particularly demanding low-range applications.

The process connection of 201 is suitable for pressure media compatible with stainless steel and 600 series Inconel.

Ultra-low differential pressure sensor

Setra 201’s patented variable capacitance sensor design combines minimal simplicity, precision, and excellent thermal stability. It uses a chrome-nickel diaphragm and an insulated electrode. The working principle is that the capacitance value of the diaphragm changes correspondingly with the pressure rise. Then, it is converted into a fully modulated linear current output signal by detecting the change in the capacitance.

Cost-effective

Designed for rugged durability, overvoltage capability up to 45 PSI (310 kPa), and a wide operating temperature range, the Setra 201 sensor is ideal for demanding applications.

Characteristic

  • All welded structure
  • No o-ring
  • Overpressure capability up to 45 PSI (310 kPa)
  • Comply with CE certification

Application

  • Steam recovery system
  • Exhaust control system
  • Industrial scrubber

Data Sheet: Setra Model 201 Data Sheet
Instruction Manual: Setra Model 201 Operating Instructions
