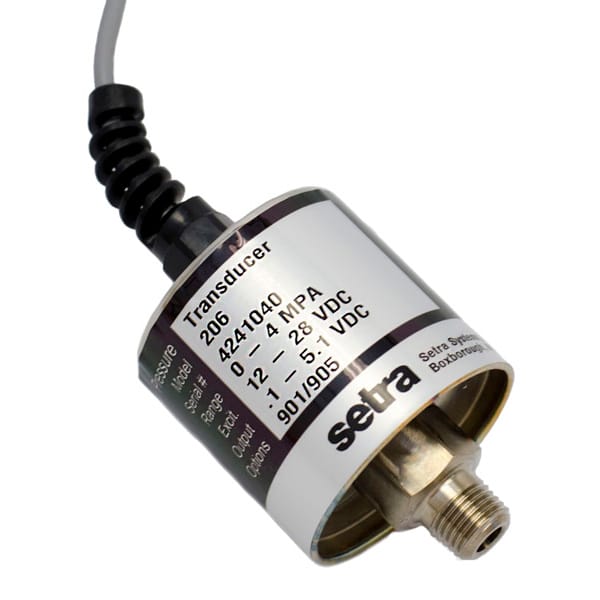

The Setra 206 is an industrial pressure transducer built for general process and OEM applications where good accuracy and a rugged build both matter. Accuracy is ±0.13% FS across most ranges, with a pressure range from 0-25 PSI up to 0-10,000 PSI (0-1.6 to 0-700 bar), available in gauge, compound, or absolute configurations.
Construction is all stainless steel wetted parts in a stainless steel case, NEMA 4 and IP65 rated to keep moisture out. It has a user-accessible zero and span potentiometer, so it can be field-calibrated without sending it back to the factory. Output is 4-20mA, 0.1-5.1VDC, 1-5VDC or 1-6VDC, on 12-28VDC excitation with reverse polarity protection, and response time is 5 milliseconds. Overpressure ratings scale with the range ordered; for example, the 0-25 PSIG version has a 100 PSI proof pressure and 500 PSI burst pressure.
From our experience, this gets specified for industrial process control and monitoring, hydraulic and pneumatic systems, HVAC systems, energy management systems, and manufacturing and automation processes. Before we quote this, we would normally check the pressure range, output signal, and connection type needed. Hope this helps.
