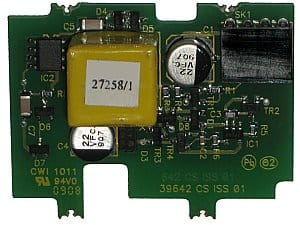

West PO2-W08 Transmitter Power Supply Option Board
The West PO2-W08 is a plug-in option board that gives a West Plus Series controller its own onboard power source for an external transmitter, removing the need for a separate power supply when wiring in a 2-wire transmitter. It is a simple, space-saving way to power auxiliary field instruments directly from the controller itself.
How It Works
PO2-W08 installs into Option Slot 3 of a compatible Plus Series controller and provides an unregulated 24V DC supply at 22mA, sized to power a typical loop-powered transmitter. Because it occupies Option Slot 3 specifically, it must not be fitted into Option Slot 2, and it is intended for use alongside the controller’s own input wiring to keep transmitter power and signal on a single, tidy installation.
Key Features
- Adds an onboard 24V DC, 22mA transmitter power supply to Plus Series controllers
- Removes the need for a separate external power supply for field transmitters
- Installs specifically in Option Slot 3
- Compatible across the Plus Series range, including 1/16, 1/8, and 1/4 DIN models
- Simple plug-in field upgrade for existing installations
Applications
PO2-W08 is used wherever a West Plus Series controller needs to power a loop-powered field transmitter directly, simplifying wiring and eliminating the cost and panel space of a separate power supply.
