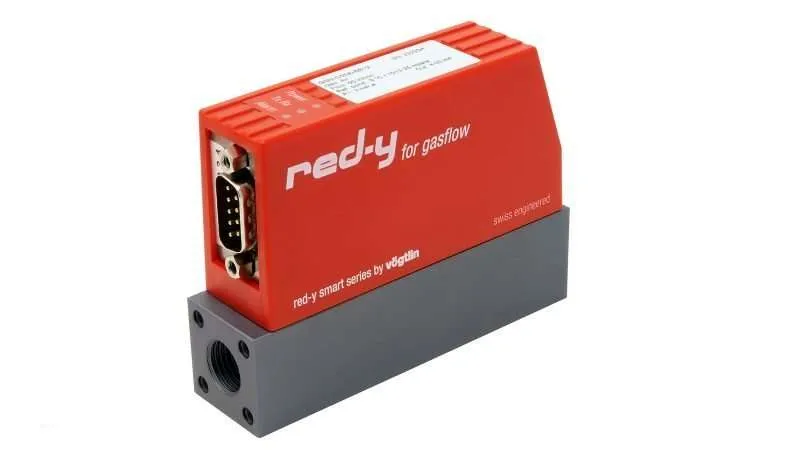

Vögtlin Instruments GSM Red-y Smart Mass Flow Meter

Vögtlin Instruments GSM-A5SA-BN00

Part Number: GSM-A5SA-BN00 Categories: , ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Model: GSM-A5SA-BN00
Medium: Air/air
Measuring range: 10-500
Measuring unit: mln/min
Accuracy : Standard: ±1% full scale
Temperature: 20 °C
Pressure inlet: 2 bar a
Connection: G1/4″ Inside thread
Body material: Aluminium
Seals: FKM
Power supply: +24 Vdc
Output : RS485 + 4-20mA
Calibration protocol: with

Ref. Pressure : 1013 [mBar]
Ref. Temperature : 0 [°C]

  • Vögtlin Red-y Smart with high-precision MEMS technology (CMOS Sensors) also it set new standards for mass flow meter concerning response characteristics and measuring accuracy.
  • With using Thermal Mass Flow Measurements principle Vogtlin Red-y Smart Series hence is insensitive to pressure and temperature changes. Because of all device with real gas calibration thus this ensures high accuracy and reproducibility. The calibration is traceable to the METAS standard (Federal office of Metrology, Switzerland)
  • Vogtlin “Get Red-y” software comes free with Red-y Smart Series for efficient device management via any PC.
  • While Vogtlin “Get Red-y” Software available to view flow rate & temperature, change set points, select measured gas also other not mentioned.
  • Red-y Smart is available as an option with the built-in display to view the flow rate directly.
  • Up to 10 different gases or gas mixtures available under one Red-y Smart for the multi-gas option.
  • With the latest MEMS technology, the mass flow meters and controllers have both digital and analog interface as standard. Profibus interface is available as an option.

Data Sheet: Vogtlin Red-y Smart Datasheet
Quick Manual: Vogtlin Red-y Smart Quick Manual
Manual: Vogtlin Red-y Smart Operating Manual
