| Actuation Level | N/A |
| Switch Operation | Normally Closed (Non-Reversible) |
| Min. Liquid | N/A |
| Stem Material | Polysulfone |
| Float Material | N/A |
| Float Diameter | N/A |
| Mounting Size | M12x1-8 |
| Mounting | Vertical or Horizontal |
| Switch Type | TTL/CMOS Compatible |
| Input | 5 VDC |
| Output | Sink 40 ma max, up to 30 VDC |
| Maximum Pressure (PSI) | 250 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 230 |
| Electrical Termination | 22 AWG, TPE Insulated 78″ Leads |
| Wetted Materials | Polysulfone, Flurocarbon |
| Approvals | UL Recognized, CE |

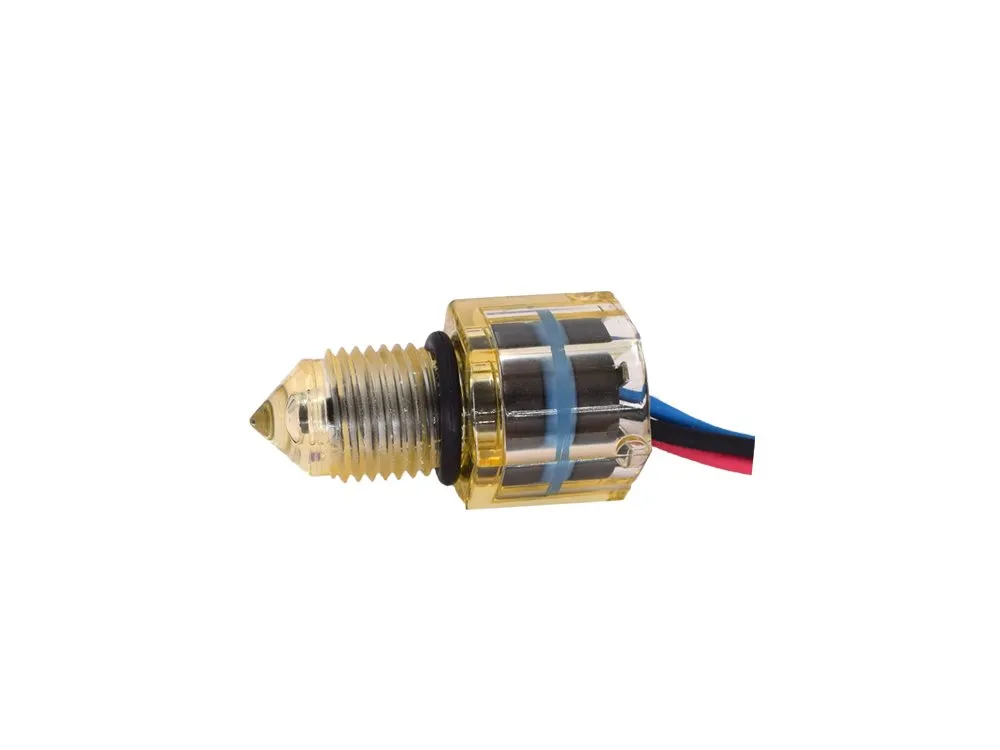

Gems ELS-950 Series Single-Point Level Switch
Data Sheet: Download Catalog Page
Instruction Manual:Download Instruction Bulletin
