SKU: Gems Sensors ELS-1100HT
High performance Isoplast plastic level switch
Category: Electro-Optic Level Switches, Level Switches, Level Transmitters
Send us your requirement and we'll reply with a quotation and technical advice.

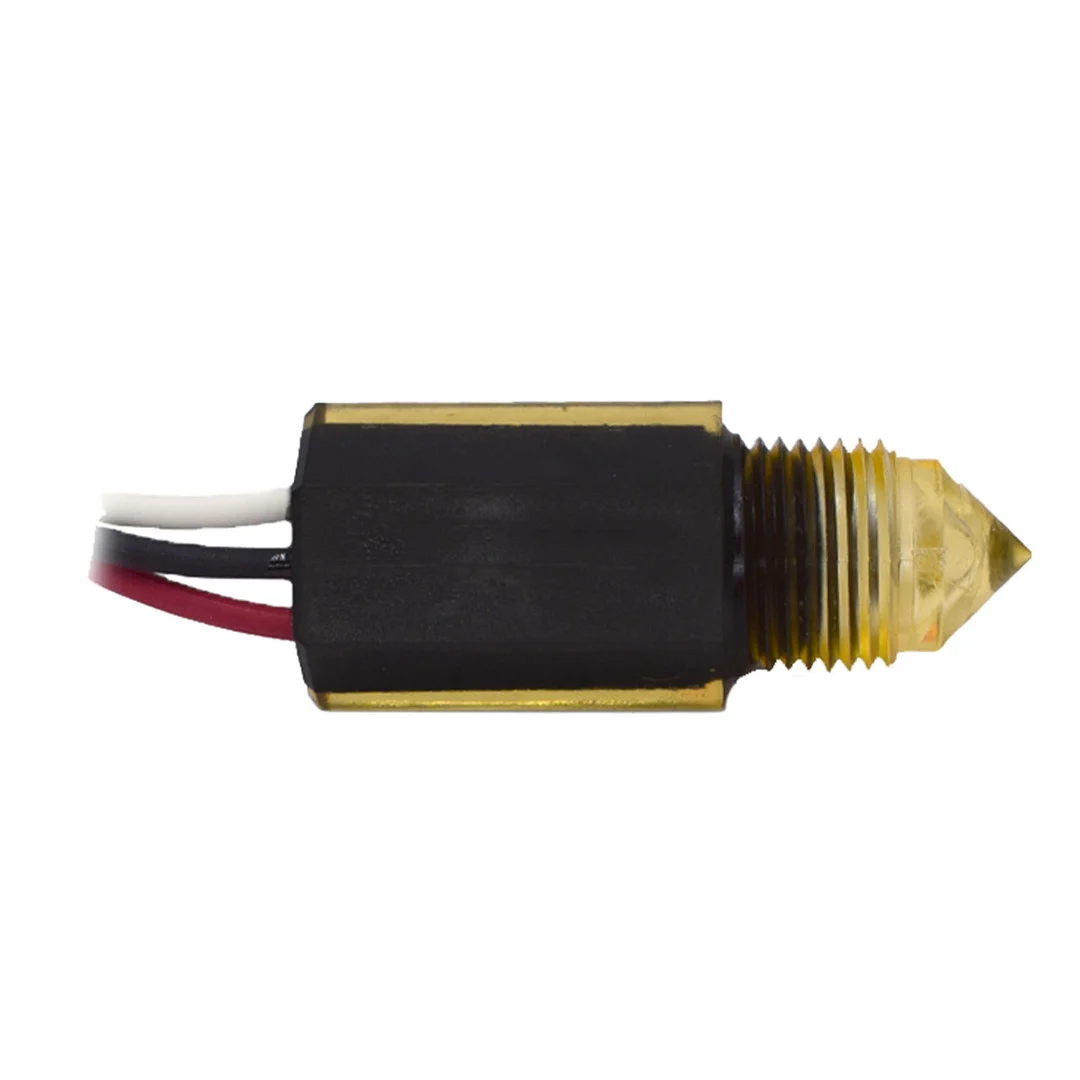

Gems ELS-1100HT Series Single-Point Level Switch is the high-temperature version of the ELS-1100 and is made from high-performance Isoplast plastic. While maintaining broad chemical compatibility, these units also handle fluid temperature to 212°F (100°C). They feature 3/8″ NPT mountings and are 1/2″ long.
| Gems ELS-1100HT / ELS-1100HTS Electro-Optic Level Sensor (High Temperature) Technical Specifications | |
|---|---|
| ● GENERAL | |
| Description | Slightly larger than the standard ELS-1100, the “HT” (High Temperature) version is made from high-performance Isoplast® plastic. While maintaining broad chemical compatibility, these units handle fluid temperatures to 212°F. They feature 3/8″ NPT mountings, and the “HTS” (Short) version is the shortest of any Gems plastic electro-optic switch body — a mere 1/2″ long. UL Listed, File No. E108913. |
| Typical Applications | Coolant reservoir monitoring; medical diagnostic and sterilizer equipment; low lubricant warning on machine tools; low level warning in hydraulic reservoirs. |
| ● SPECIFICATIONS | |
| Materials — Housing and Prism | Isoplast®. |
| Operating Pressure | 0 to 150 PSI, maximum. |
| Operating Temperature* | -40°F to +212°F (-40°C to +100°C). |
| Current Consumption | 45 mA, approximately. |
| Output | TTL/CMOS compatible. Transistor output with 10K pull-up resistor may sink 18 mA. 12 VDC input power units switch a maximum 5 VDC on output. |
| Repeatability | ±1 mm. |
| *These switches are not for use in freezing liquids or steam/high condensation environments — contact Gems for alternative solutions. | |
| ● WIRING DIAGRAMS | |
| Transistor Output | +5 (supply through LED); 12 VDC or 5 VDC on Red; White = switch output; Black = ground/common. |
| TTL Compatible Output | +5 VDC on Red; White = Output (can drive 10 TTL logic gate inputs); Black = ground/common. |
| ● DIMENSIONS — HT SERIES (3/8″ NPT) | |
| Overall Dimensions | 2″ (50.8 mm) overall length; 3/8″ NPT process thread; 3/4″ hex (19.0 mm); epoxy encapsulated; lead wires #22 AWG, polymeric, 12″ to 14″ extended. |
| ● DIMENSIONS — HTS SERIES | |
| 3/8″ NPT Mounting | 1.38″ ref. overall; .55″ ref.; 3/8″ NPT process thread; 3/4″ hex; epoxy encapsulated; lead wires #22 AWG, polymeric, 12″ to 14″ extended. |
| M16 x 2 Straight Thread Mounting with O-Ring | 1.38″ ref. overall; .55″ ref.; 3/4″ hex; M16 x 2 thread; Viton® O-ring; lead wires #22 AWG, polymeric, 12″ to 14″ extended. |
| ● ORDERING — HT SERIES | ||
| Specify part number based on input and output condition required. | ||
| Input Power | Wet | Dry |
| 5 VDC | 153061 ⚡ | 153062 |
| 12 VDC* | 153063 ⚡ | 153064 |
| ⚡ = Stock item. *12 VDC input power units switch a maximum 5 VDC on output. Extend the power and switching capabilities of 10-28 VDC models with Gems Opto-Pak Controllers. | ||
| ● ORDERING — HTS SERIES (5 VDC INPUT ONLY) | ||
| Specify part number based on Wet or Dry switch actuation and mounting type. | ||
| Mounting Type | Wet | Dry |
| 3/8″ NPT | 181674 | 181675 |
| M16x2 | 191341 | 191342 |
| ● RELATED ACCESSORY | |
| Extended Power / Switching (Opto-Pak) | Extended power and switching capabilities of 12 VDC models with Gems. Converts TTL output signal to a 5 Amp relay output. Available as an open circuit board or mounted in a NEMA 4X enclosure. See Page A-31. |
Download Gems Sensors ELS-1100HT Series Single-Point Level Switch information here
Datasheet: Gems_ELS-1100HT-Datasheet
Manual: Gems_ELS-1100HT_Manual
