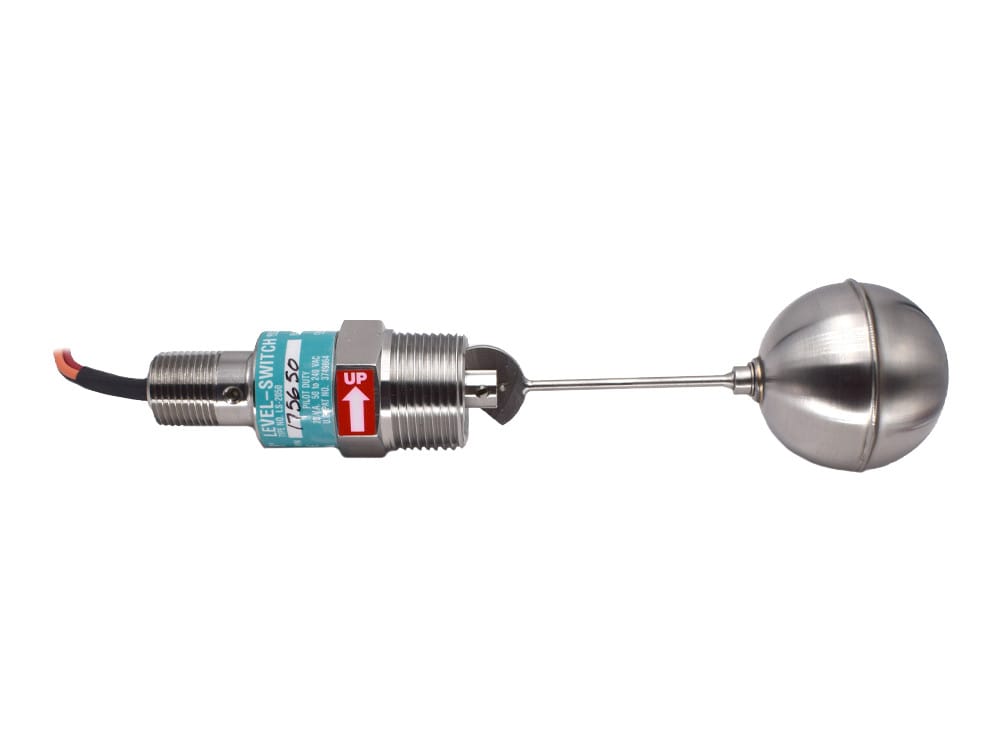

Gems LS-2050 Series Level Switch

From: $0

Part Number: Gems LS-2050 Categories: , ,

Email Us: sales@mycelectric.com

  • Stem Material: 316 Stainless Steel
  • Float Material: 316 Stainless Steel
  • Mounting Size: 1" NPT Male
  • Switch Type: SPDT (20 VA)

$731

  • Stem Material: Brass
  • Float Material: Buna
  • Mounting Size: 1" NPT Male
  • Switch Type: SPDT (20 VA)

$432

  • Stem Material: 316 Stainless Steel
  • Float Material: 316 Stainless Steel
  • Mounting Size: 1" NPT Male
  • Switch Type: SPDT (20 VA)

$634

  • Stem Material: 316 Stainless Steel
  • Float Material: 316 Stainless Steel
  • Mounting Size: 1" NPT Male
  • Switch Type: SPST (100 VA)

$683

  • Stem Material: 316 Stainless Steel
  • Float Material: 316 Stainless Steel
  • Mounting Size: 1" NPT Male
  • Switch Type: SPST (100 VA)

$683

  • Stem Material: 316 Stainless Steel
  • Float Material: 316 Stainless Steel
  • Mounting Size: 1" NPT Male
  • Switch Type: SPDT (20 VA)

$0

Gems LS-2050 Series Single-Point Level Switches solve the problem of point level sensing in tanks with inaccessible tops or bottoms, or at intermediate locations in larger tanks. Installation is through the tank side at the detection point. LS-2050 Series switches are ideal for pressures up to 900 psig (62 bar) and temperatures up to 300°F (149°C). Explosion-proof models are available.

  • Large Size
  • 1″ NPT
  • High Pressure/Temperature
