The Fabri-Level Kit comes with everything you need to assemble a complete 1-point or 2-point level switch system, designed for easy pipe-plug installation on your tank.

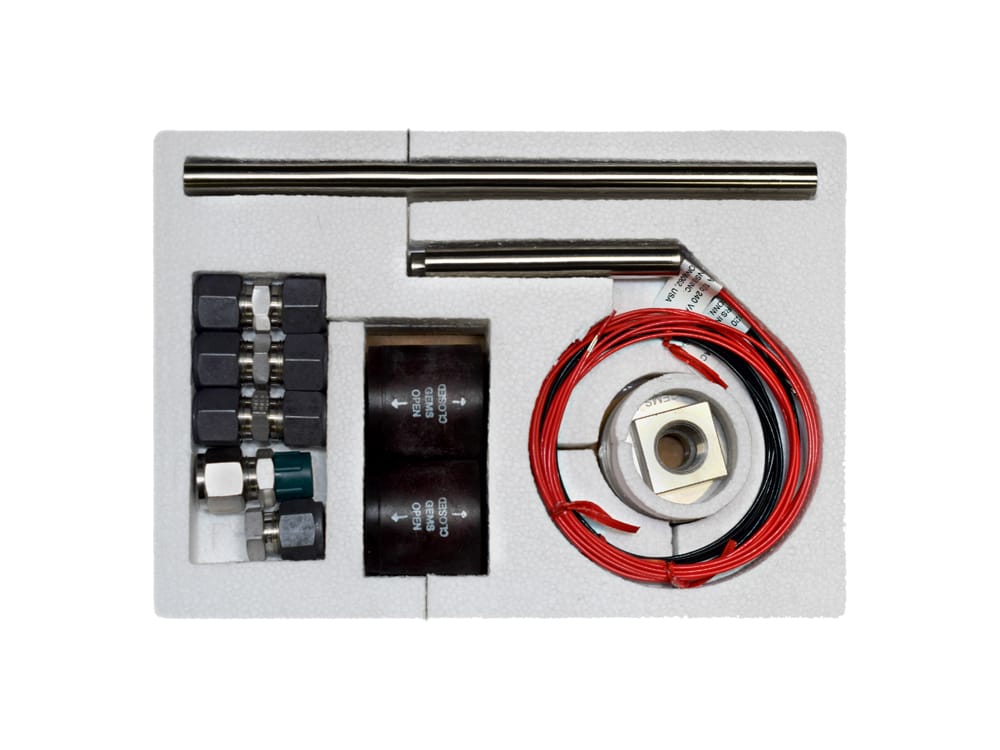

What’s included in each kit:
– 1 × Tube connector
– 1 × Mounting plug
– 2 × Level stations (switch, tube, and float)
– 2 × Extension tubes
– 1 × Tube end fitting
– 3 × Tube unions
This makes installation straightforward—no need to source parts separately, saving you time and effort on site.
Application & Compliance
Fabri-Level Kits are suitable for Class I and Class II applications, in accordance with EN60730 standards and any additional requirements depending on your specific process or medium.
For Class I (metal body units): Proper grounding is required between the metal housing and the system’s earthing.
For Class I (plastic body units): If used with conductive liquids, the medium must be effectively earthed to ensure safety.
For Class III applications: The system must be powered using a Safety Extra-Low Voltage (SELV) supply.
For specific model compliance or detailed application guidance, it’s best to check directly with the manufacturer.
Download Gems Sensors Fabri-Level Switch Kits information here
