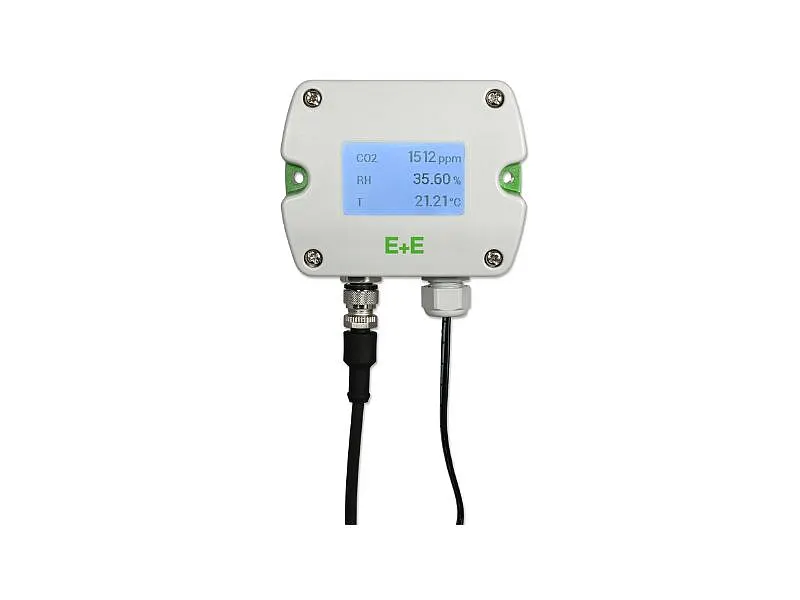

E+E Sigma 05 Modular Sensor Platform
The E+E Sigma 05 turns E+E’s digital sensing probes into a complete transmitter. Plug in up to three probes and Sigma 05 recognises them automatically, then makes their readings available on analogue outputs and an optional graphic display.
How It Works
Sigma 05 accepts up to three E+E sensing probes with RS485 interface and Modbus RTU protocol. It detects the connected probes and sets itself up automatically using built-in rules. Up to five measurands can be assigned to the two freely selectable, scalable analogue outputs and to the display. For checks, the E+E Reference Probe Modbus RTU can be connected in place of a regular probe to verify function and accuracy.
Key Features
- Hosts up to 3 E+E probes (RS485, Modbus RTU)
- Up to 5 measurands on 2 scalable analogue outputs and optional display
- Plug-and-play automatic probe detection and setup
- Configuration, thresholds, display layout and probe adjustment via free PCS10 software
- Compatible probes include EE072, EE074, EE671, EE680, EE872, HTP501 and MOP301
- Function and accuracy check with the E+E Reference Probe Modbus RTU
Applications
- Combined humidity, temperature, CO₂, pressure and air velocity monitoring
- Moisture-in-oil monitoring with the MOP301 probe
- Process and climate control needing analogue outputs from digital probes
Industries Served
- HVAC and building automation
- Industrial process control
- Laboratories and test facilities
Frequently Asked Questions
How many probes can the Sigma 05 connect?
Up to three E+E sensing probes with RS485 / Modbus RTU.
Which probes work with the Sigma 05?
E+E probes including EE072, EE074, EE671, EE680, EE872, HTP501 and MOP301.
Need help choosing the right E+E Sigma 05 configuration? Contact Celectric for a quotation, datasheet and technical support in Malaysia.
