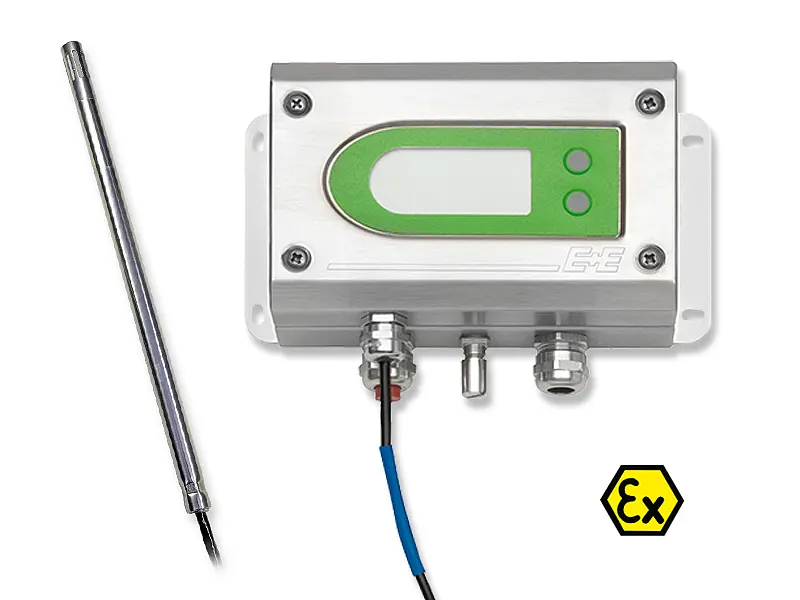

E+E EE300Ex Humidity and Temperature Sensor for Intrinsically Safe Applications
The E+E EE300Ex measures humidity and temperature in explosion-hazard areas for both gas and dust, and complies with ATEX (Europe), IECEx (international) and FM (USA/Canada) classifications. Its stainless steel housing is easy to clean and well suited to pharmaceutical and chemical plants.
How It Works
A two-part enclosure lets you remove the unit for calibration without rewiring. Besides relative humidity and temperature, the EE300Ex calculates dew point, wet-bulb temperature, absolute humidity and more, and outputs on two 4–20 mA loops in 2-wire technology. It can also measure moisture in oil, as water content in ppm or water activity (aw).
Key Features
- Intrinsically safe for gas and dust: ATEX, IECEx and FM
- Calculates dew point, wet-bulb temperature, absolute humidity and more
- Two 4–20 mA outputs, 2-wire
- Two-part enclosure for calibration without rewiring
- Robust, easy-to-clean stainless steel housing
- Moisture-in-oil measurement in ppm or water activity (aw)
Applications
- Chemical and pharmaceutical plants
- Paint booths
- Explosion-hazard storage rooms
- Power stations and grain mills
- Oil platforms and lube/gear oil monitoring
Industries Served
- Oil and gas
- Chemical
- Pharmaceutical
- Power generation
- Food and grain processing
Frequently Asked Questions
Which approvals does the EE300Ex have?
ATEX (Europe), IECEx (international) and FM (USA/Canada) for gas and dust hazard areas.
Can the EE300Ex measure moisture in oil?
Yes, as water content in ppm or as water activity (aw), for example on oil drying systems and oil platforms.
