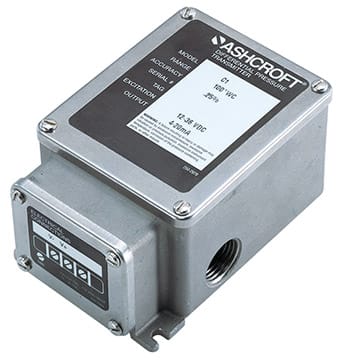

Ashcroft IXLdp Series Differential Pressure Transmitters
The Ashcroft IXLdp Series differential pressure transmitters are expertly engineered for precise measurement and control of very low pressure and flow in industrial and process plant settings. These transmitters are built to withstand harsh environments, featuring a robust NEMA 4X enclosure, an integrated electrical terminal box that is isolated from the electronics, and durable threaded process connections.
Advanced Sensor Technology
At the heart of the Ashcroft IXLdp transmitter is a cutting-edge variable capacitance sensor utilizing Si-Glas™ technology. This innovative sensor incorporates a glass-clad silicon chip, which combines the high sensitivity of a variable capacitance transducer with the exceptional repeatability of a micro-machined, single-crystal silicon diaphragm. The Si-Glas sensor is constructed from sputtered metals and glass that are molecularly bonded to silicon, ensuring longevity and reliability. Notably, the sensor is free from epoxies or organic materials that could lead to drift or mechanical degradation over time.
Key Features
- Accuracy: Certified 0.5% and 0.25%
- Pressure Ranges: 0.1 inH2O to 200 inH2O
- High Overload Protection
- FM Approval for Hazardous Locations
- Optional Features: Choose from six types of output signals
- 5:1 Turndown Ratio
- Variable Damping Options
With its combination of advanced technology, robust construction, and versatile features, the Ashcroft IXLdp Series differential pressure transmitters are an ideal choice for demanding industrial applications.
