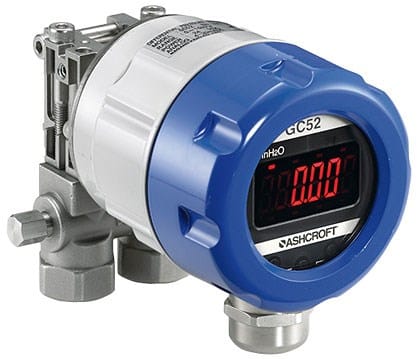

Ashcroft GC52 Differential Pressure Transmitter
The Ashcroft GC52 differential pressure transmitter is a compact and efficient solution designed for flow and tank level applications that require precise low differential pressure measurements. Featuring the innovative Si-Glas 316 stainless steel isolated sensor, this transmitter is capable of monitoring a diverse range of both wet and dry media.
Key Specifications
- Measurement Ranges: Unidirectional from 0-4 to 0-400 in H2O; Bidirectional up to ±200 in H2O
- Line Pressure: Supports static pressures up to 300 psi
- Enclosure: Rugged aluminum NEMA 4X IP65, with a compact diameter of 2.56 inches
- Display: Backlit LCD for easy local reading
- Output Signal: Two-wire configurable 4 to 20 mA output, adjustable for re-ranging and tare functions
Features
- Internal Push-Button Configuration: Enables quick adjustments to measurement ranges
- Scaling Function: Allows the display to show arbitrary physical units for enhanced usability
- Loop Check Function: Facilitates output of 4 to 20 mA without the need for applied pressure
The Ashcroft GC52 is engineered for reliability and ease of use, making it an excellent choice for professionals seeking accurate differential pressure measurement solutions.
