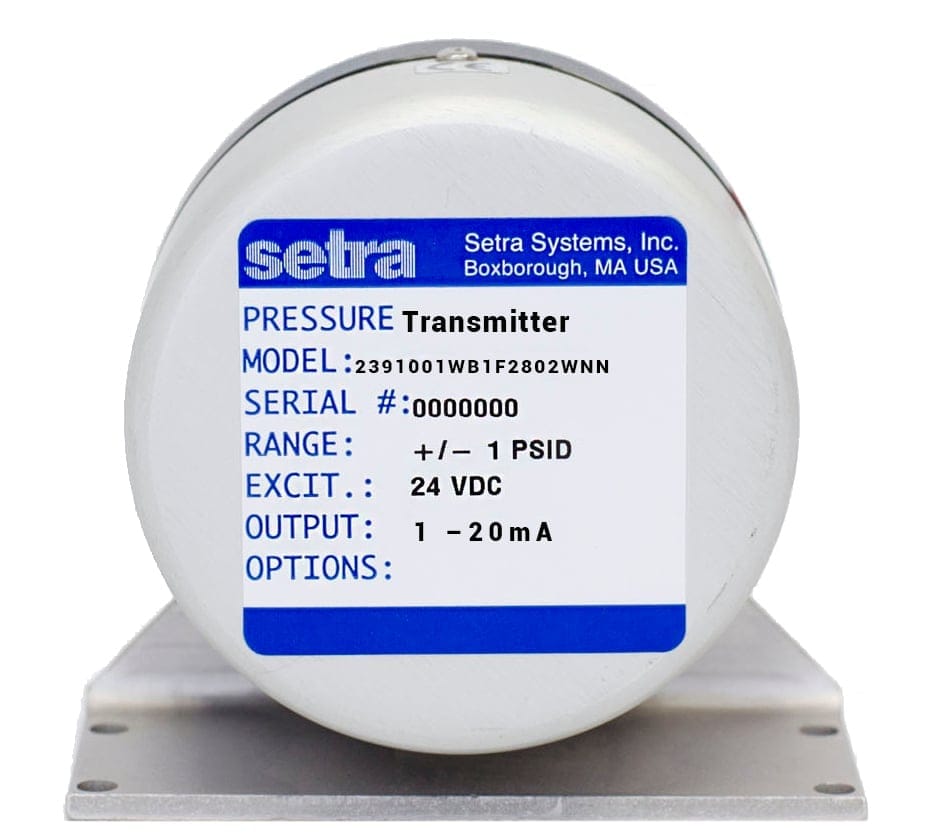

Setra 239 High Accuracy Low Differential Pressure Transducer

Part Number: Setra 239 Categories: , ,

Email Us:
WhatsApp Us: +6016-933 1533

  • ±0.14% FS accuracy
  • Optional ±0.073% FS accuracy
  • Fast Response Time: <10ms
  • Fast Warm-Up: <0.1% over 5 min.
  • Low Thermal Error
  • CE & RoHS Compliant

As measuring/testing the benchmark for low and medium pressure measurements the Setra’s Model 239 is designed for high precision inspection needs in low-pressure applications.

Setra’s patented variable capacitance sensor is extremely simple in construction. It consists of a stainless steel diaphragm and a fixed electrode to form a variable capacitor. When the pressure changes, the capacitance value also changes. The capacitance is detected and determined by Sit. (Setra) A unique electronic circuit converts it into a linear DC signal. Its unique structure allows it to withstand high static and differential pressure overloads. Excellent precision, long-term stability, and fast dynamic response make this series of products ideal for differential pressure measurement in many fields such as aerospace, meteorology, and scientific research.

Long-term reliability

Setra 239 Differential Pressure Sensor The 239 differential pressure sensor uses a simple and reliable design of the SEAT patented variable capacitance sensor. Setra Model 239 provides repeatable and reliable high-precision data in demanding applications.

High precision and high performance in the low-pressure range

Setra 239 provides high-precision inspection and measurement sensors for the extremely low-pressure applications industry. 239 Wide range of pressure options and accuracy ± 0.073% FS wide temperature range. The Model 239 has a faster response time than its competitors.

Customer settings

Setra 239 offers many mechanical and electrical parameter options that can be integrated into existing system designs. These options accelerate engineering design, increase project competitiveness, and help customers get to market quickly.


  • HVAC control
  • Leak detection
  • Economic testing
  • Medical equipment
  • Energy management
  • Cleanroom
  • Wind speed measurement

Data Sheet: Setra Model 239 Data Sheet
User Manual: Setra Model 239 Operating Instructions
