Ashcroft AXLdp Low Differential Pressure Transducer

Ashcroft AXLdp Low Differential Pressure Transducer

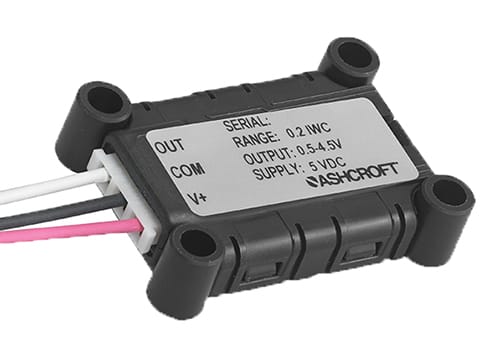

The Ashcroft AXLdp is a state-of-the-art low differential pressure transducer designed for precision monitoring in various applications. This ultra-low sensor features 3mm tube stubs, making it suitable for mounting directly on a PC board.

Key Features

• Pressure Range: Monitors pressures as low as 0.20 inches of water up to 20.00 inH2O.
• Accuracy: Standard accuracy of ±2% of span, with an optional upgrade to ±1% of span available for all pressure ranges.
• Sensor Technology: Utilizes an Si-Glas variable capacitance sensor with an ultra-thin single crystal diaphragm for enhanced repeatability and stability.
• Durability: The silicon diaphragm is free from glues and organic materials, minimizing drift and mechanical degradation over time.
• Output Signal: Provides a 0.5 to 4.5 VDC analog ratiometric output when powered with 5 VDC.

With its advanced design and reliable performance, the Ashcroft AXLdp low differential pressure transducer is an excellent choice for applications requiring precise pressure measurement.
