| sku | FS-550 |
| Primary Material of Construction | Alloy |
| Sensor Type | Paddle Type |
| Adjustable Range | N/A |
| Flow Setting (GPM) | 15.0 – 52.0 |
| Body Material | Brass |
| Port Size | 1″ NPT Male |
| Switch Type | SPDT (20VA) |
| Set Point Accuracy | ±25% |
| Maximum Pressure (PSI) | Over 500 |
| Minimum Temperature (°F) | -30 |
| Maximum Temperature | 300 |
| Electrical Termination | 18 AWG, 24″-26″ Polymeric Leads |
| Set Point Differential | N/A |
| Wetted Materials | Brass, 316 Stainless Steel, Teflon®, Ceramic |
| Approvals | UL Recognized, CSA, CE, FM |
| Recommended Filtration | N/A |

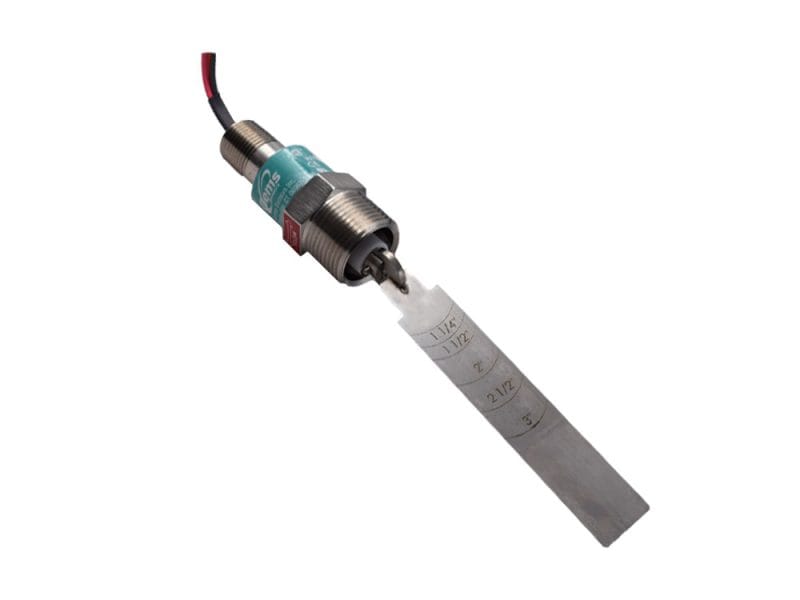

Gems FS-550 Series Flow Switch
