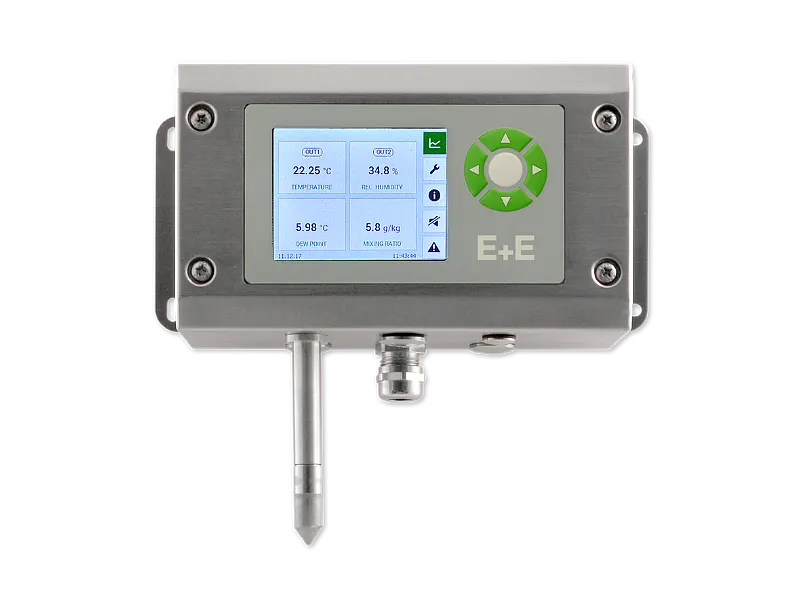

E+E EE310 High-End Humidity and Temperature Sensor for Industrial Applications
The E+E EE310 brings high accuracy and full diagnostics to demanding industrial humidity applications. Its TFT colour display shows up to four measurands, logs data on board and makes setup intuitive.
How It Works
Choose wall, duct or remote-probe versions; the remote probe covers −80 °C to 180 °C (−112 °F to 356 °F) and the pressure-tight probe works up to 20 bar (300 psi). The integrated data logger stores all measured and calculated values, which can be viewed as graphs on the device or downloaded via USB. E+E ChemShield technology, combined with SensShield, helps reduce the influence of chemical pollutants on the sensing element.
Key Features
- TFT colour display showing up to four measurands, with error diagnostics
- Integrated data logging, graph view and USB download
- Remote probe −80 °C to 180 °C; pressure-tight probe up to 20 bar (300 psi)
- Two analogue outputs plus optional RS485 (Modbus RTU) or Ethernet (Modbus TCP)
- IP65 polycarbonate or stainless steel enclosure
- E+E ChemShield and SensShield protection against chemical contamination
- Adjustment via display or free PCS10 software
Applications
- Industrial process monitoring and control
- Climate and test chambers
- Dryers and humidifiers
- Cleanrooms and fume hoods
- Biofilters and food fermentation
Industries Served
- Food and pharmaceutical
- Chemical and fertiliser
- Industrial manufacturing
Frequently Asked Questions
Does the EE310 log data?
Yes. It logs all measured and calculated values, displays them as graphs and allows download via USB.
What is E+E ChemShield on the EE310?
A protection technology that, together with SensShield, reduces the influence of chemical pollutants on the humidity sensing element.
Need help choosing the right E+E EE310 configuration? Contact Celectric for a quotation, datasheet and technical support in Malaysia.
