We had an enquiry from a customer who wanted a basic, economical panel meter to display a DC voltage or current reading on their control panel – nothing fancy, just a reliable number on the wall. “CSN Series economic panel meter” sounded like exactly what they needed from the catalog description.
This looks simple, but “CSN Series” is actually a family name covering a few different input types – DC voltage/current, thermal resistance (RTD), and potentiometer, each built as its own model within the range (for example CSN-VA for voltage/current). We would need to know your exact input signal type before we can point you to the correct model and order code.

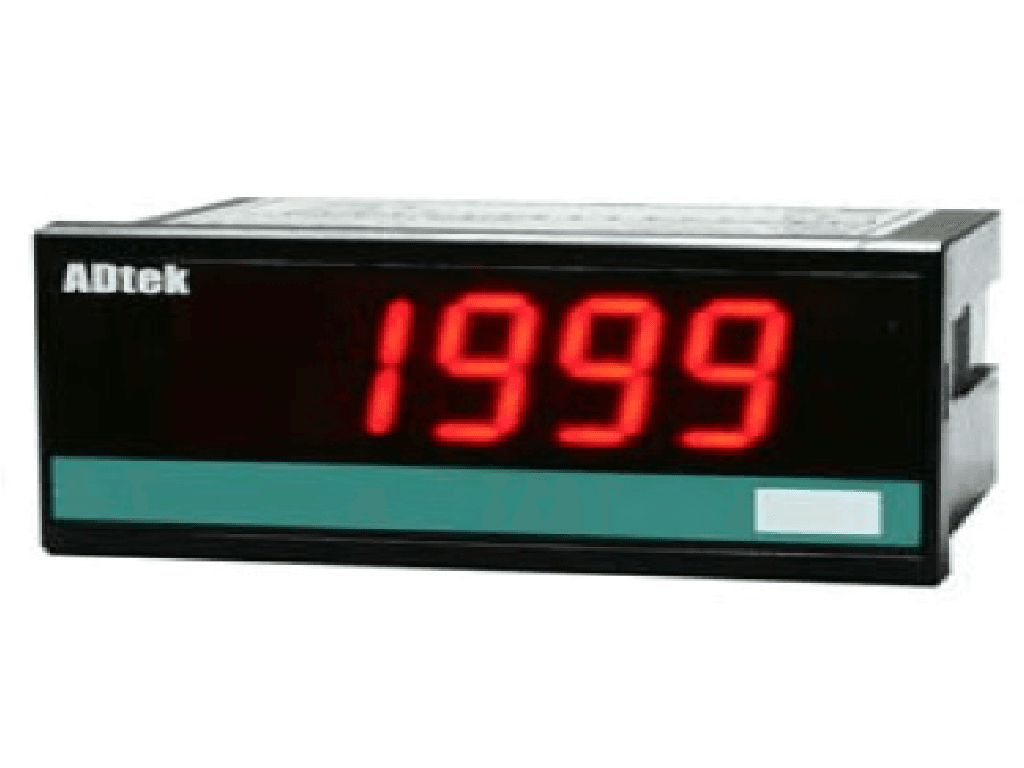

In actual application, the CSN Series gives you a large 20.0mm high-brightness LED display with an anti-jamming design for reliable readings in an industrial environment. The zero point, coarse adjustment, and fine adjustment can all be set directly in the field using the built-in potentiometers, so you don’t need special tools to calibrate it on site. It has a straight-in terminal design to keep wiring simple, and an installation depth of only 73mm, so it fits into a shallow panel cutout.
From our experience, before we quote this, we would normally check your exact input signal type – DC voltage/current, thermal resistance, or potentiometer – and your desired display range, so we can point you to the right model within the CSN Series. Hope this helps.
