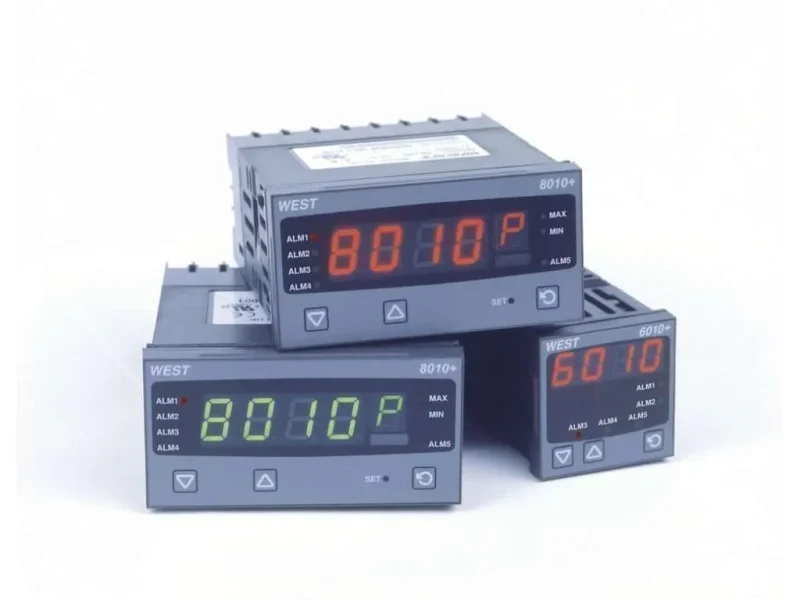

West 8010+ Temperature Process Indicator

Part Number: West P8010 Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084

The West 8010+ is a digital panel process and temperature indicator which provides a high contrast, high visibility display. The temperature indicator is designed for optimal ease of use in a wide variety of process applications.

The West 8010+ provides a jumperless configuration, plug-in output boards, and an efficient PC configurator for a quick and simple setup.  In addition, plug-in modules allow PV retransmission or transmitter power supply and up to 4 alarm relays (latching or non-latching).

The process and temperature indicator provide a user-selectable dual color display option with fixed red or green displays or a green to red color change when an alarm condition occurs.

  • 10V SSR driver output allows drive of up to 3 typical SSR/SCR inputs
  • Up to 5 outputs
  • Plug-in Output Modules for SSR driver, Triac, Relay and linear outputs – easily field changeable
  • Latching Alarms – Included as standard.
  • PC Configurator with easy to use “wizard” suits both novice and experienced users Jumperless configuration
  • Self-recognition of option boards – promotes simple, error free set-up Modbus and ASCII Communications
  • Tare function
  • Multi-point Scaling and Tare features included as standard
Product Category:Process Indicator
Dimensions (Size and Format):48 x 96 x 110mm (HxWxD), 1/8 DIN Cutout
Primary Input Type:Universal (TC, RTD, DC Linear mA/mV)
Other Inputs:1 Digital
Output Type: Relay, DC linear, SSd, Triac, 24V transmitter power supply
Max. No. of Outputs:5
Power Supply:

100 to 240 AC 50/60Hz

20-48 V AC 50/60Hz

22-65 V DC

Communications:RS-485 serial (MODBUS© & West ASCII protocols)
Certifications:UR, cUR, CE, CSA
Panel Sealing: IP65
Software:Plus Series Configurator

Datasheet: West_6010-8010-datasheet-DS-Px010-1209-1-EN4
Instruction Manual: West-Plus-Series-Full-Manual-EN
