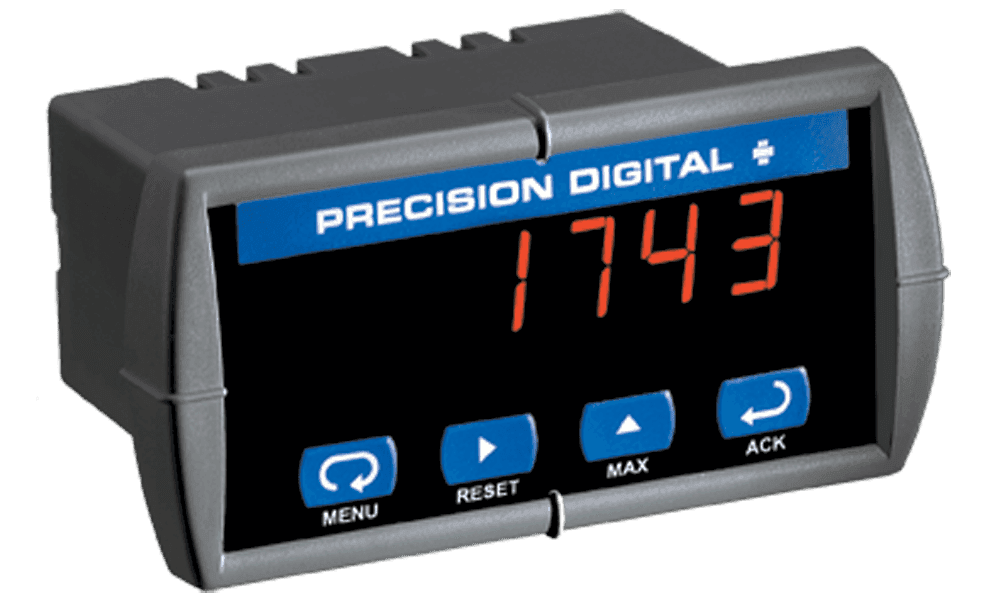

Precision Digital PD743 Sabre T Digital Panel Meter

Introducing the Precision Digital Sabre T PD743 temperature meter, a perfect blend of simplicity and advanced features. This affordable digital panel meter is designed specifically for display-only applications, making it an excellent choice for various settings.

The PD743 is user-friendly, thanks to its straightforward menu structure. You only need to select the input and temperature units, eliminating any confusion during setup.

Even though it’s budget-friendly, the PD743 is loaded with features that you would typically find in more expensive models:

  • Universal power supply for versatile use
  • NEMA 4X front for durability and protection
  • Temperature display range up to 1260°C for type K thermocouples
  • UL listed for safety assurance
  • CE marked for compliance with European standards

Choose the Precision Digital PD743 for a reliable and efficient temperature measurement solution that won’t break the bank. Its combination of features and ease of use makes it an ideal choice for both professionals and hobbyists alike.

  • J, K, T, E Thermocouple & 100 Ω Pt RTD
  • Pre-Calibrated for All Input Types
  • NEMA 4X, IP65 Front
  • Shallow Depth 1/8 DIN Case 3.2″ Behind Panel
  • 4 Digit Display, 0.56″ (14 mm) High, Red LEDs
  • Easy Front Panel Programming
  • Maximum/Minimum Display
  • Universal Power Supply 85-265 VAC
  • 12-36 VDC/12-24 VAC Power Option

General Specifications

Display: 0.56″ (14.2 mm) red LED, 4 digits (-1999 to 9999)
Front Panel: NEMA 4X, IP65; panel gasket provided
Programming Methods: Four front panel buttons
Display Update Rate: RTD: 5/sec; TC: 2.5/sec
Overrange: Display flashes 9999
Underrange: Display flashes -1999
Recalibration: All inputs are calibrated at the factory; recalibration is recommended at least every 12 months
Max/Min Display: Stored until reset by user or meter is turned off
Password: Restricts modification of programmed settings
Non-Volatile Memory: Settings stored for a minimum of 10 years
Power Options: 85-265 VAC, 50/60 Hz; 90-265 VDC, 8 W max or 12-36 VDC; 12-24 VAC, 6 W max
Required Fuse: UL Recognized, 5 A max, slow-blow; up to 6 meters may share one fuse
Normal Mode Rejection: 64 dB at 50/60 Hz
Isolation: 4 kV input/output-to-power line
Operating Temperature: 0 to 65°C
Storage Temperature: -40 to 85°C
Relative Humidity: 0 to 90%
Connections: Power & Signal: removable screw terminal blocks accept 12 to 22 AWG. Note: RJ11 header for factory use only
Enclosure: 1/8 DIN, high impact plastic, 94 V-0, color; gray
Weight: 8.5 oz (241 g)
UL File Number: E160849; 508 Industrial Control Equipment
Warranty: 1 year parts & labor

Temperature Inputs

Inputs: Factory calibrated, field selectable: type J, K, T, or E thermocouples and 100 Ω platinum RTD (0.00385 or 0.00392 curve)
Resolution: 1°; type T: 1° or 0.1°
Cold Junction Reference: Automatic
Temperature Drift: ±2°C maximum
Input Impedance: Greater than 100 k Ω

TypeRangeAccuracyRangeAccuracy
J-58º to 1382ºF±2ºF-50º to 750ºC±1ºC
K-58º to 2300ºF±2ºF-50º to 1260ºC±1ºC
T-292º to 700ºF±2ºF-180º to 371ºC±1ºC
E-58º to 1700ºF±2ºF-50º to 927ºC±1ºC
RTD-328º to 1382ºF±1ºF-200º to 750ºC±1ºC

Connections

PD743 connections
Rear View of Meter

Mounting Dimensions

DC Voltage Digital Panel Meter, Mounting Dimension

Data Sheet: LDS743_1 Datasheet
Instruction Manual: LIM743_0 Instruction Manuals
