SureSite® Mini-Alloy Visual Level Gauges

Product Overview

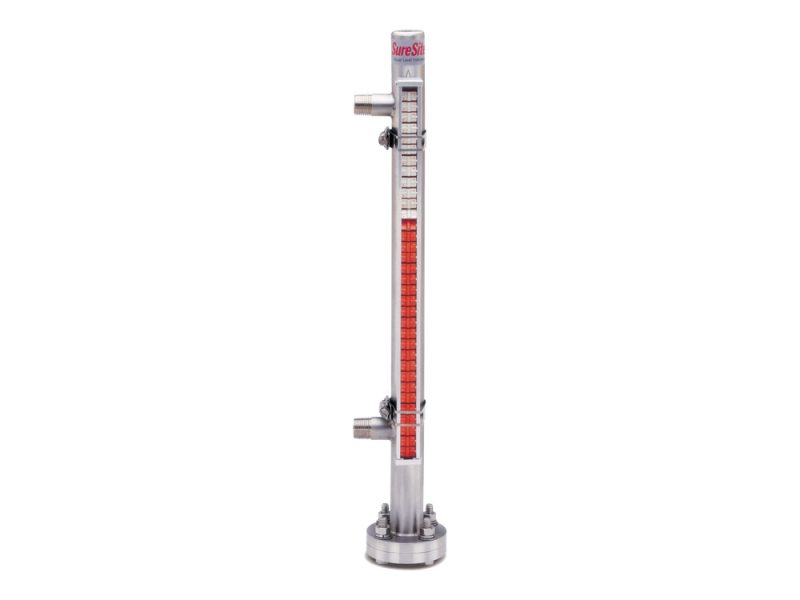

Engineered for environments where space is at a premium, the SureSite® Mini-Alloy Visual Level Gauge boasts a streamlined 1-1/4 inch (32 mm) diameter profile. This advanced indicator delivers highly visible, external fluid monitoring, making it the perfect safety upgrade to replace fragile, legacy sight glasses.

Optimized specifically for clean, low-viscosity fluids, the Mini-Alloy series ensures dependable, highly accurate level detection even in the most restricted installation footprints.

Key Benefits

Ultra-Compact Design: The slim 32 mm (1-1/4 in) build seamlessly integrates into tight spaces and constrained layouts.
Enhanced Visibility: Provides a clear, highly readable external indication of your system’s liquid levels.
Modern Sight Glass Replacement: Eliminates the safety risks, clouding, and maintenance issues associated with outdated glass tubes.
Application Focus: Purpose-built to deliver reliable, long-lasting performance in clean, low-viscosity liquid applications.

Gems Mini SureSite® Visual Level Indicator (Alloy Versions – Miniature Size) Technical Specifications
● GENERAL
Description	Miniature, alloy-construction visual liquid level indicator for tight spaces — only 1-1/4″ in diameter. Can replace existing, antiquated sight glasses for excellent external visual liquid level indication. Ideal for use with clean, low-viscosity liquids.
Key Features	Lengths to over 20 feet (6.1 meters); 316 Stainless Steel construction; pressures to 400 psi (27 bar) — temperature to 400°F (204°C).
Typical Applications	Pharmaceuticals, medical equipment, food and beverages, semiconductor manufacturing, boilers.

● MOUNTING CONFIGURATION TYPES
	Type AM	Type BM	Type CM	Type DM
Process Connections	Top and Bottom	Side and Side	Top and Side	Side and Bottom
Typical Length (C to C)*	C to C = L + 7.72″ (196 mm)	C to C = L	C to C = L + 3″ (76 mm)	C to C = L + 5″ (127 mm)
*Dimensions vary due to connections, material and specific gravity. Additional materials, floats, connections and manufacturing techniques are available to extend lengths and operational capabilities — contact Gems if these parameters do not meet requirements.

● PHYSICAL / CONSTRUCTION
Housing Diameter	1-1/4″.
Housing Material	316 Stainless Steel.
Flag Material	Plastic, rated to 300°F (148.9°C), or Aluminum, rated to 400°F (204°C). (Note: the Product Check List order form on this datasheet separately lists aluminum flags as usable to 750°F / 399°C — confirm rating with factory for the specific configuration ordered.)
Length of Indication (Uninterrupted)	240″ (610 cm) maximum.
O-Ring Seal Material	Viton® standard; Ethylene Propylene or others available upon request.

● PERFORMANCE / RATINGS
Pressure / Temperature Rating	Rated to 400 PSI at temperatures up to approximately 300°F, derating from 400 PSI down to approximately 373 PSI as temperature rises from 300°F to 400°F (maximum 400°F). See datasheet chart for the full pressure/temperature curve; consult factory for requirements outside these parameters. Indicators are also available for temperatures as low as -200°F (-129°C).
Minimum Specific Gravity	0.7.

● OPTIONS
Add-On Instrumentation	Either Switch Modules or a Continuous Output Transmitter can be used on a Miniature SureSite Indicator — not both. Transmitter signal is conditioned for compatibility with most electronic instruments, to 300°F (149°C).
Other Options	Electropolished outer diameter (OD) and/or inner diameter (ID) housings available upon request; indicating scales for graduated flag indication.

● CONNECTION CODES
Top / Bottom (T / B) — Standard	Blind Fixed (T1/B1), Blind Removable (T10/B10), NPT Fixed Female (T2/B2), NPT Fixed Male (T3/B3), NPT Removable Female (T11/B11), NPT Removable Male (T12/B12), Flange Fixed (T19/B19), Flange Removable (T20/B20), Weld Socket Butt (T18/B18), Weld Removable Butt (T13/B13).
Top / Bottom (T / B) — Sanitary	Sanitary Flange (T7/B7), Sanitary Flange with Mating Blind Flange (T8/B8).
Side (Sa / Sb)	No Connection (S1), NPT Male Nipple (S2), NPT Female Coupling (S3), ANSI Flange (S4), Sanitary Flange (S5), Buttweld Nipple (S6).

● CONNECTION CODE DESCRIPTIONS (T/B)
1	Welded cap
2	Welded cap with FNPT
3	Welded cap with MNPT
7	Sanitary flange
8	Sanitary flange with mating blind flange
10	Standard fixed flange / mating blind flange
11	Standard fixed flange / mating FNPT reducing flange
12	Standard fixed flange / mating flange with MNPT nipple
13	Standard fixed flange / mating flange with butt weld nipple
18	Welded cap with butt weld nipple
19	Welded cap with ANSI flange
20	Standard fixed flange / mating reducing flange spool with ANSI flange

● CONNECTION CODE DESCRIPTIONS (Sa / Sb — SIDES)
S1	No connection
S2	MNPT nipple
S3	FNPT coupling
S4	ANSI flange
S5	Sanitary flange
S6	Buttweld nipple
Note: Gems recommends a removable top and/or bottom connection for float access. Connection codes shaded/highlighted on the original datasheet are stock items — select these where possible for the most economical indicators with 3-day delivery (Qwik Configured, up to 10 units).

● HOW TO ORDER

This series is custom-configured per application rather than sold under fixed catalog part numbers. Complete the “Product Check List” (RFQ form) specifying: process conditions (operating/max pressure, operating/max temperature, liquid media, specific gravity, viscosity, indoor/outdoor location); mounting configuration type (AM, BM, CM or DM); connection codes for all 4 positions (T, Sa, Sb, B); length of visual indication (L, 240″ max.) and connection-to-connection dimension (C to C); flag type (Plastic or Aluminum) and O-ring material (Viton® standard, or Ethylene Propylene); and any accessories required (Switch Modules — SPST/SPDT/DPDT 120VAC/DPDT 24VDC; Indicating Scales — Feet and Inches/Inches/Metric/Custom; Continuous Transmitter — 0–5VDC/0–12VDC/4–20mA). Submit to Gems Sensors Inc. (800-378-1600) or complete online at gemssensors.com for a quote.

Download Gems SureSite® Level Indicators information here

Datasheet: Gems_Alloy-Mini-datasheet
Manual: gems instructions-suresite_allsections
