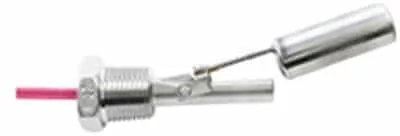

Gems LS-7 Series Type 8 Level Switch

Gems 247380

$297

Switch OperationSelectable
Min. Liquid0.55
Stem Material316 Stainless Steel
Float MaterialPolypropylene
Float Diameter5/8″
Mounting Size1/2″ NPT Male
MountingHorizontal
Switch TypeSPST (20 VA)
Maximum Pressure (PSI)100
Minimum Temperature (°F)-40
Maximum Temperature (°F)225
Electrical Termination22 AWG 24″, TFE, Zip Cord
Wetted Materials316 Stainless Steel, Polypropylene
ApprovalsUL Recognized, CSA Listed, CE

Datasheet: Gems_LS-7-Series-Datasheet
Instruction Manual: Gems_Reed-Switch-Protection_Manual
Instruction Manual: Gems_LS-7-Metallic_Manual
