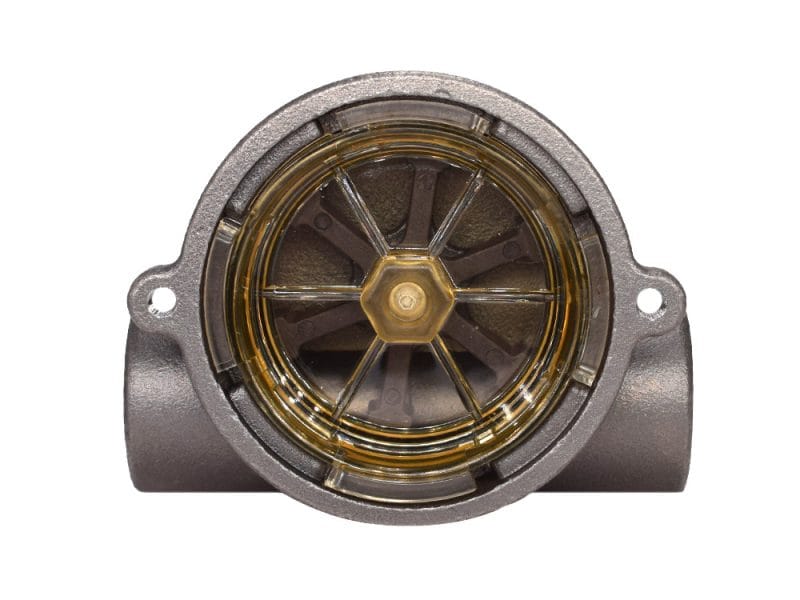

Gems RFS Type Electronic Flow Sensor

Gems 165073

$536

ModelRFS
Primary Material of ConstructionAlloy
Sensor TypeRotor Type
Adjustable Range0.1 – 5.0
Flow Setting (GPM)0.1 – 5.0
Body Material316 Stainless Steel
Port Size9/16″-18 Straight Thread
Switch TypeSPDT (1A – 24VDC, 1/3 A – 110VAC)
Set Point Accuracy±5% (factory set)
Maximum Pressure (PSI)150 – 300
Minimum Temperature (°F)-20
Maximum Temperature212
Electrical Termination22 AWG, 24″-26″ PVC Leads
Set Point Differential15%
Wetted Materials316 Stainless Steel, Ceramic, PPS Composite, Polysulfone, Viton (Low Flow Adapter – Polyproylene)
ApprovalsUL Recognized, CE
Recommended Filtration150 micron

Datasheet: Gems_RFS-Types-datasheet
Instruction Manual: Gems_RFS_Manual
