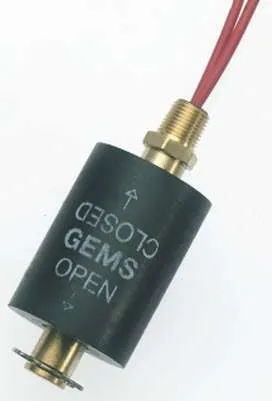

Gems LS-1800 Series Single-Point Float Level Switch

Gems 01807

$133

Actuation Level7/8″
Switch OperationNormally Open (Reversible)
Min. Liquid0.75
Stem Material316 Stainless Steel
Float MaterialBuna
Float Diameter1 1/4″
Mounting Size1/8″ NPT Male
MountingVertical
Switch TypeSPST (20 VA)
InputN/A
OutputN/A
Maximum Pressure (PSI)150
Minimum Temperature (°F)-40
Maximum Temperature (°F)230
Electrical Termination18 AWG, 24″ long, Polymeric leads
Wetted Materials316 Stainless Steel, Buna N, Hysol
ApprovalsUL Recognized, CSA Listed, CE, ROHS
