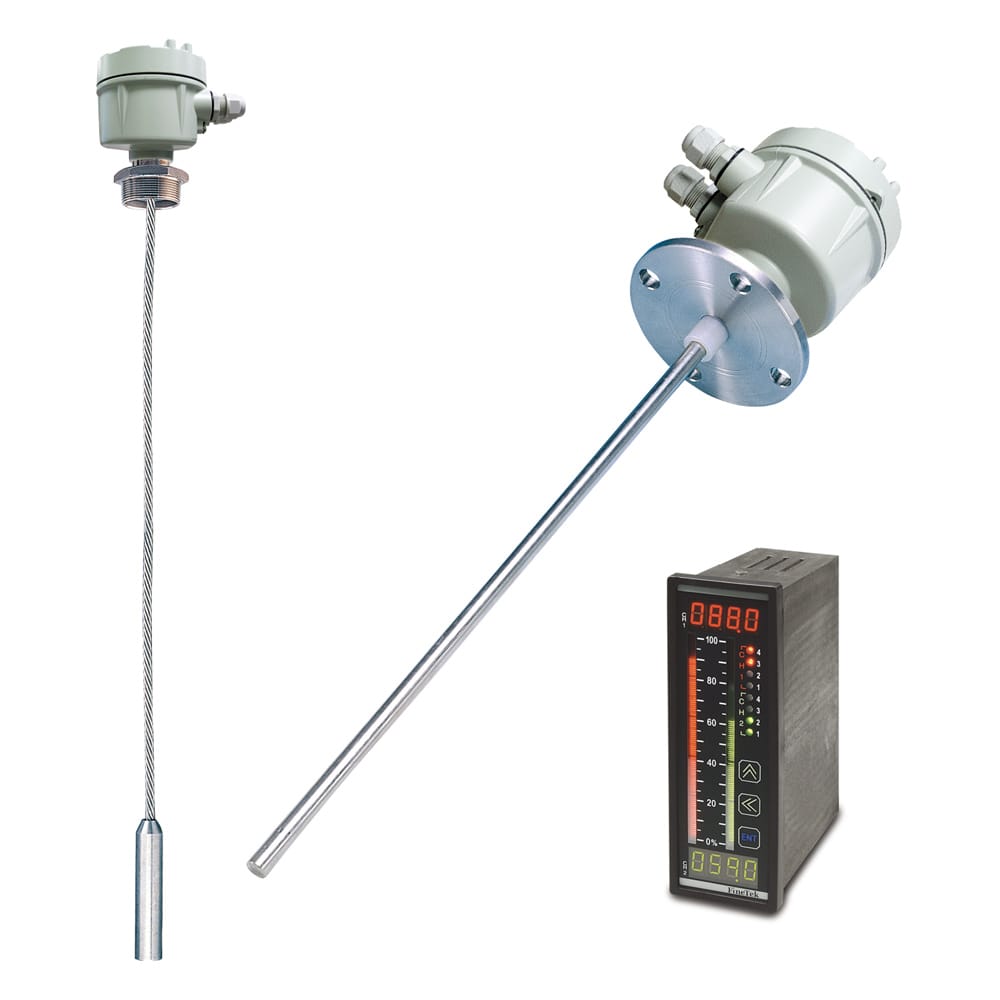

| Fine-Tek EBX RF-Admittance Level Transmitter |
| ● GENERAL DESCRIPTION |
| Type | RF Admittance (capacitance) Level Transmitter |
| Principle | Measures the capacitance formed between the sensing probe and the reference probe / metal vessel wall. Capacitance increases as the medium level rises; the difference (dC) between empty (CA) and full (CB) capacitance is proportional to level. Recommended range dC = 25~2000 pF. |
| Output Signal | 4~20mA two-wire loop powered; HART digital output (option); local LCD display |
| Product Families Covered | Standard Type: EB5200/EB5201/EB52A0/EB52A1 (Rod), EB5300/EB5301/EB53A0/EB53A1 (Cable), EB5400/EB54A0 (Two Rod), EB5500/EB55A0/EB5501 (Anti-wave Tube).
Explosion-Proof Type: EB1710/EB1711/EB1720/EB1721/EB1730/EB1731/EB1740/EB1742/EB1743/EB1752/EB1753. |
| |
| ● MATERIALS |
| Probe Material (bare) | SUS304 (order code MA) or SUS316 (order code MB) |
| Probe Coating Options | FEP (code 03), PFA (code 14), PP (code 18), PVDF (code 24) |
| Weight / Bob Material (cable & wire probe types) | SUS304, SUS304+PTFE, or Ceramic (insulator weight, EB1710/EB1711) |
| Two Rod Flange Body | P.P. (polypropylene) flange construction (EB5400/EB54A0) |
| |
| ● ELECTRICAL / PERFORMANCE RATINGS — STANDARD TYPE (EB52/53/54/55 Series) |
| Operation Voltage | 18~30 Vdc |
| Analog Output | 4~20mA (two wire) |
| Digital Output | HART (option) |
| Measuring Range | 20~2000 pF |
| Accuracy | ±1% FS or ±0.5 pF |
| Temperature Effect | < ±0.2% FS/°C or 0.1 pF/°C |
| Protection Rating | IP65 |
| Ambient Temperature | -40~85°C (LCD monitor: -20~85°C) |
| Operating (Process) Temperature | -40~85°C (standard models); -40~200°C (Hi-Temp models: EB5201/EB52A1/EB5301/EB53A1/EB5501) |
| Operating Pressure | 40 kg/cm² (bare probe types); 32 kg/cm² (coated probe types); 5 kg/cm² (Two Rod EB5400/EB54A0) |
| Tensile Strength (cable types) | 2000 kgf |
| |
| ● ELECTRICAL / PERFORMANCE RATINGS — EXPLOSION-PROOF TYPE (EB17 Series) |
| Operation Voltage | 12~36 Vdc |
| Output Current | 4~20mA (two wire) |
| Measuring Range | 0~5000 pF |
| Accuracy | ±1% FS (25°C) |
| Protection Rating | IP65 |
| Ambient Temperature | -20~70°C |
| Operating (Process) Temperature | -40~80°C (standard models); -40~190°C (Hi-Temp models: EB1711/EB1721/EB1731) |
| Operating Pressure | 40 kg/cm² |
| Tensile Strength (wire probe types) | 2000 kgf |
| |
| ● DIMENSIONS & PER-MODEL DATA (unit: mm unless noted) |
| Model | Description | Max. Probe Length | Connection | Weight | | Standard Type | | EB5200 | Rod Probe (SUS304) | 4M | 1″PT or 1″x5kg/cm² flange | Approx. 2.3kg(1m) | | EB52A0 | Rod Coating Type (SUS304+PFA) | 4M | 1″PT or 1″x5kg/cm² flange | Approx. 2.3kg(1m) | | EB5201 | Hi-Temp Rod Probe (SUS304) | 4M | 1″PT or 1″x5kg/cm² flange | Approx. 2.8kg(1m) | | EB52A1 | Hi-Temp Rod Coating (SUS304+PFA) | 4M | 1″PT or 1″x5kg/cm² flange | Approx. 2.8kg(1m) | | EB5300 | Cable Type (SUS304) | 50M | 1″PT or 1″x5kg/cm² flange | Approx. 2.3kg(1m) | | EB53A0 | Cable Coating Type (SUS304+PFA / PTFE weight) | 50M | 1″PT or 1″x5kg/cm² flange | Approx. 2.3kg(1m) | | EB5301 | Hi-Temp Cable Type (SUS304) | 50M | 1″PT or 1″x5kg/cm² flange | Approx. 2.8kg(1m) | | EB53A1 | Hi-Temp Cable Coating (SUS304+PFA / PTFE weight) | 50M | 1″PT or 1″x5kg/cm² flange | Approx. 2.8kg(1m) | | EB5400 | Two Rod Probe (SUS304) | 1500mm | 2″x5kg/cm² flange (min. connection is 2″ flange) | Approx. 2.3kg(1m) | | EB54A0 | Two Coating Rod Probe (SUS304+PP/PFA) | 1500mm | 2″x5kg/cm² flange (min. connection is 2″ flange) | Approx. 2.3kg(1m) | | EB5500 | Anti-wave Tube Type (SUS304) | 2M | 1″PT or 1″x5kg/cm² flange | Approx. 2.3kg(1m) | | EB55A0 | Anti-wave Tube Coating Type (SUS304+PFA) | 4M | 1″PT or 1″x5kg/cm² flange | Approx. 2.3kg(1m) | | EB5501 | Hi-Temp Anti-wave Tube Type (SUS304) | 4M | 1″PT or 1″x5kg/cm² flange | Approx. 2.8kg(1m) | | Explosion-Proof Type (NEPSI / ATEX — all rated IP65, 40kg/cm²) | | EB1710 | Wire Probe (SUS304 probe / Ceramic weight) | 50M | 3″x5kg/cm² flange or 1-1/2″PT screw | Approx. 3.7kg(1M) | | EB1711 | Hi-Temp Wire Probe (SUS304 probe / Ceramic weight) | 50M | 3″x5kg/cm² flange or 1-1/2″PT screw | Approx. 4.2kg(1M) | | EB1720 | Rod Probe (SUS304/316) | 4M | 1-1/2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.3kg(1M) | | EB1721 | Hi-Temp Rod Probe (SUS304/316) | 4M | 1-1/2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.8kg(1M) | | EB1730 | Wire Probe (SUS304 probe & weight) | 50M | 2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.3kg(1M) | | EB1731 | Hi-Temp Wire Probe (SUS304 probe & weight) | 50M | 2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.8kg(1M) | | EB1740 | Anti-Corrosion, PVDF Coating (SUS304+Coating) | 4M | 1-1/2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.3kg(1M) | | EB1742 | Anti-Corrosion, PP Coating (SUS304+Coating) | 4M | 1-1/2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.3kg(1M) | | EB1743 | Anti-Corrosion, FEP Coating (SUS304+Coating) | 4M | 1-1/2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.3kg(1M) | | EB1752 | Anti-Corrosion Wire Probe, PP Coating (SUS304+Coating / SUS304+PTFE weight) | 50M | 2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.3kg(1M) | | EB1753 | Anti-Corrosion Wire Probe, FEP Coating (SUS304+Coating / SUS304+PTFE weight) | 50M | 2″x5kg/cm² flange or 1-1/2″PT screw | Approx. 2.3kg(1M) |
|
| Note: Source also references EB55A1 (Hi-Temp Wire Coating Type, PFA coating) but does not provide a full dimensional/ratings row for it. Tolerance on total product length is ±5mm. |
| |
| ● WIRING / CONNECTIONS |
| Power Supply | If the panel meter is not supplied with power, prepare a 24V power supply for use. |
| Max. Cable Length | Depends on max. loop resistance; resistance must not exceed (Vs-22) x 50Ω to ensure measurement accuracy. |
| Cable Routing | Separate signal cable from other high-power cables (pumps, conveyors, solenoid valves). Verify all wiring before powering on. |
| Grounding | Transmitter cover must contact the tank perfectly; avoid panel meter grounding touching the tank wall. Connect isolation cable to GND of power. Process connection should be grounded during installation. |
| EMI Mitigation | If a heater or other electric device is present in the application, contacting the transmitter cover to the tank can reduce EMI. |
| Installation Notes | Use Two Rod Probe type for non-conductive tanks, or install a concentric metal pipe shield (with vent hole) around the probe. Keep rod/wire probe parallel to and clear of the tank wall. Use a Coating Probe type for conductive media (bare electrode will not work correctly). Housing cover and conduit opening must be sealed/tightened to prevent moisture ingress. For non-conductive powder/granule media in large tanks, fix the wire probe to the bottom of the tank. A pipe shield is recommended if an agitator is present. |
| |
| ● ORDERING INFORMATION |
| Model Number | Order Code | | Standard & Hi-Temp Type | | EB5200 | EBX10000-A1 | | EB52A0 | EBX10000-B1 | | EB52A1 | EBX10200-B1 | | EB5201 | EBX10200-A1 | | EB5300 | EBX10000-A2 | | EB53A0 | EBX10000-B2 | | EB53A1 | EBX10200-B2 | | EB5301 | EBX10200-A2 | | EB5400 | EBX10000-A3 | | EB54A0 | EBX10000-B3 | | EB5500 | EBX10000-A4 | | EB55A0 | EBX10000-B4 | | EB5501 | EBX10200-A4 | | Explosion-Proof Type | | EB1710 | EBX1001C-A8 | | EB1711 | EBX1021C-A8 | | EB1720 | EBX1001C-A1 | | EB1721 | EBX1021C-A1 | | EB1730 | EBX1001C-A2 | | EB1731 | EBX1021C-A2 | | EB1740 | EBX1001C-B1□□□□□□24 | | EB1742 | EBX1001C-B1□□□□□□18 | | EB1743 | EBX1001C-B1□□□□□□14 * | | EB1752 | EBX1001C-B2□□□□□□18 | | EB1753 | EBX1001C-B2□□□□□□03 |
|
| * Discrepancy in source: EB1743 is labeled “FEP Coating” in the dimensional drawing, but its printed order-code suffix (14) matches the Probe Material legend code for PFA, not FEP (03). Printed exactly as it appears in the source PDF; verify with Fine-Tek before ordering. “□” = digit filled in per the code structure below (connection, etc.). |
| Order Code Structure: EBX1 [05][06][07][08]-[09][10][11][12][13][14][15][16][17][18][19][20][21][22][23] |
| Position | Field | Codes | | 05-06 | Type | 00: Standard; 02: Hi-Temp.; 03: Sanitary; 32: Sanitary+Hi-Temp. | | 07-08 | Certificate | 00: None; 1C: ATEX-Sealed Explosion-proof; 1D: ATEX-Dust Explosion-proof; 7C: NEPSI-Sealed Explosion-proof; 7D: NEPSI-Dust Explosion-proof | | 09-10 | Probe Type | A1: Rod Probe; A2: Cable; A3: Two Rod Probe; A4: Anti-wave Tube; A5: Anti-wave Tube Coating; A8: Insulator; B1: Rod Coating; B2: Cable Coating; B3: Two Coating Rod Probe; B4: Anti-wave Tube Two Coating | | 11-12 | Connection – Flange Item | AK: JIS-FF; AN: ANSI-RF; AS: DIN-FF (or Thread item: AA: JIS; AB: ISO; AC: ANSI; AD: DIN) | | 13-14 | Connection – Size | A8: 1″; B1: 1-1/2″; B2: 2″; B4: 2-1/2″; B5: 3″; D8: DN25; E1: DN40; E2: DN50; E3: DN65; E4: DN80 | | 15-16 | Connection – Type/Rating | 01: PT male; 03: PF male; 05: BSP male; 07: NPT male; 13: GAS male; 40: 5kg/cm²; 42: 10kg/cm²; 48: 150 Lbs; 49: 300 Lbs; 57: PN10; 58: PN16 | | 17-18 | Probe Material | MA: SUS304; MB: SUS316; 03: FEP; 14: PFA; 18: PP; 24: PVDF | | 19 | Communication | A: None; B: HART | | 20-23 | Length | 0500~4000: 500mm~4000mm (Rod Probe Type); 0500~1500: 500mm~1500mm (Two Rod Probe Type); 0500~A500: 500mm~50000mm (Cable Type, “A” = ×100) |
|
| Tolerance of total product length is ±5mm. Specifications, dimensions, and codes subject to change without notice. |
| |
| ● APPROVALS |
| NEPSI (EB17 Explosion-Proof Series) | Ex d IIB T3~T6 Gb; Ex tD A21 IP65 T190°C/T130°C/T95°C/T80°C |
| ATEX (EB17 Explosion-Proof Series) | II 2G Ex d IIB T3~T6; II 2D Ex tD A21 IP65 T80°C~T190°C |
| Certificate Options (order code positions 07-08) | 00: None; 1C: ATEX-Sealed Explosion-proof; 1D: ATEX-Dust Explosion-proof; 7C: NEPSI-Sealed Explosion-proof; 7D: NEPSI-Dust Explosion-proof |
| |
| ● ACCESSORIES |
| Cable Conduit (Ex d IIC) |
