Dwyer Series Mark II Molded Plastic Manometers

SKU: Series Mark II

3% Accuracy for Stationary and Portable Applications

Category: Pressure Manometers

Price on request

Send us your requirement and we'll reply with a quotation and technical advice.

⏱ We reply within 1 working day. Specs & downloads ↓
🛠️
Lifetime technical support
🚚
Free domestic shipping
🎯
Calibration services

Follow Celectric's WhatsApp Channel →

Product details

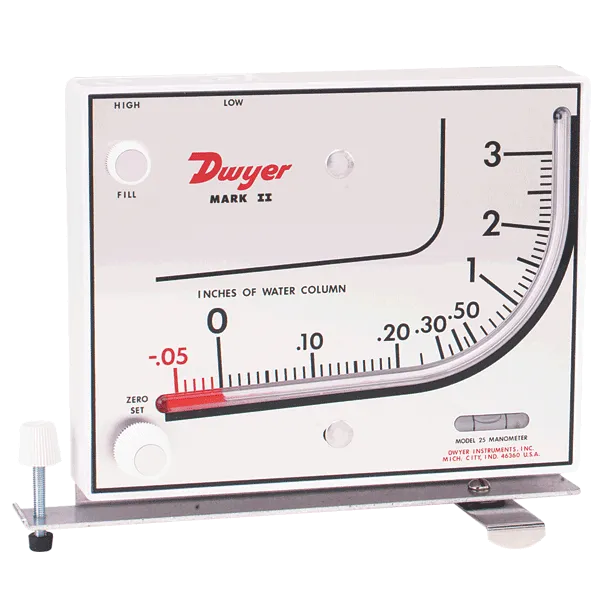

Dwyer SERIES MARK II Molded Manometers are of the inclined and inclined-vertical types. The curved inclined-vertical tube of the Model 25 gage provides higher ranges with more easily read increments at low readings. The Model 25 is excellent for general purpose work. The Model 40 inclined gage provides linear calibration and excellent resolution throughout its range. The Model 40 is ideally suited for air velocity and air filter gage applications. Both gage types are capable of pressure measurements above and below atmospheric as well as differential pressure measurements. Included with each Mark II manometer are two tubing connectors for 1/8″ pipe or sheet metal ducts, two mounting screws, 1 ounce bottle of indicating fluid, red and green pointer flags and complete instructions.
The Model 25 also includes 8′ of flexible double column plastic tubing. Portable operation of the Model 25 is made possible by the use of the optional A-612 portable stand. A short piece of tubing can be slipped over the Model 25 pressure connections to contain the gage fluid in transit.
The Model 40 contains two 4-1/2′ lengths of clear plastic tubing, a plastic swing-out stand and leveling screw for portable operation. It also features convenient rapid shutoff pressure connections and integral overpressure safety traps.

Product Applications

  • Paint booths
  • Air velocity measurement
  • Air filter gage
  • Calibrated increments, easy to read across a broad range
  • Model 25 (inclined-vertical) gives higher ranges with easy-to-read increments at low readings
  • Model 40 (inclined) offers linear calibration and good resolution across its range
  • Measures pressure above and below atmospheric, plus differential pressure
  • Compact, usable as a stationary or portable instrument for OEM or end-user applications
Pressure RangeModel-dependent, e.g. 0-3in w.c. (Model 25), 0-7in w.c. (Model 26), 0-1.00in w.c. (Model 40-1); metric ranges also available
Accuracy±3% FS (inclined-vertical and inclined types)
MaterialsMolded plastic body; red fluid (0.826 SG) or blue oil (1.91 SG)
Max Temperature140°F (60°C) inclined-vertical; 150°F (65°C) inclined
Pressure Limit10 psi inclined-vertical; 15 psi inclined
Scale Length (inclined)Approx. 8-1/4in (21cm)

What’s the difference between the Model 25 and Model 40 styles?
Model 25 is the inclined-vertical style, giving higher ranges with easier-to-read low-end increments; Model 40 is the inclined style, with linear calibration and good resolution across its range.

Can this manometer measure air velocity?
Yes — the 40-AV versions are set up for air velocity measurement, but require a pitot tube, sold separately.

What is this manometer commonly used for?
Paint booth pressure checks, air velocity measurement, and air filter gauging.
