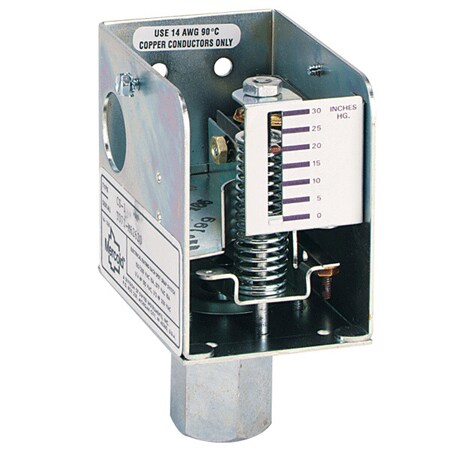

Dwyer Series CS & CD Diaphragm Pressure Switch

Series CS & CD Diaphragm Pressure Switches combine advanced design and precision construction in a small size. Unit is ideal for instrument panels, small compressors and general industrial applications. Visible set point and easy to wire SPDT snap switch reduce installation time. Operates in any position and is vibration resistant.

Wetted Materials : Nylon reinforced Buna-N and steel.

Temperature Limits : -30 to 150°F (-35 to 66°C).

Pressure Limit : 30 psig (2.1 bar) for ranges 1, 3, and 10. 50 psig (3.5 bar) for range 30. 175 psig (12.1 bar) for range 150.

Enclosure Rating : General purpose.

Switch Type : SPDT snap switch.

Electrical Rating : 15 A @ 120 VAC, 8 A @ 240 VAC.

Electrical Connections : Screw terminal.

Conduit Connection : 1/2″ hole for conduit hub.

Process Connection : 1/4″ female NPT.

Mounting Orientation : Any position.

Set Point Adjustment : Internal screw.

Weight : .5 lb (0.23 kg).

Deadband : See Ordering page.
