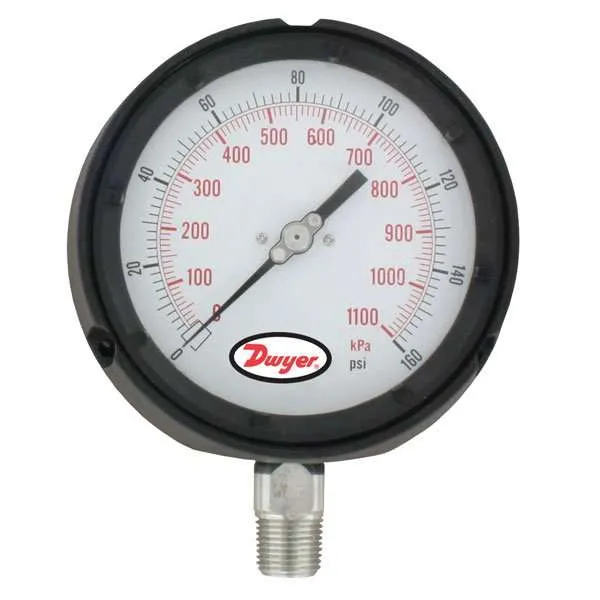

Dwyer Series 765 Process Gauge with Dampened Movement

Part Number: Series 765 Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084

The Dwyer Series 765 Process Gage with Dampened Movement minimizes the effects of vibration without liquid filling. With this dampened movement the 765 gages are ideal for use in any application where high pulsation or vibration exists. The 765 gages offer a dual scale range (psi/kPA) with ±0.5% full-scale accuracy. They are designed with a Phenolic safety-case and have a solid front with a blow-out back. Excellent chemical compatibility is ensured with the 316L SS socket and Bourdon tube. A wide offering of ranges is available from full vacuum to 20,000 psi. The 765 process gauge comes standard with bottom 1/4″ or 1/2″ male NPT connections.

Calibration Option available under Accessories.

Product Applications

  • Process applications
  • Chemical
  • Refinery
  • Fertilizer
  • Petrochemical
  • Power
  • Pharmaceutical
  • Pulp and paper
  • Cement

Service : Compatible gases & liquids.

Wetted Materials : 316L SS socket and Bourdon tube.

Housing : Phenolic plastic with safety blow-out back.

Lens : Polycarbonate.

Accuracy : ±0.5% ANSI/ASME Grade 2A.

Pressure Limits : 125% FS < 1500 psi, 115% FS for 2000 to 5000 psi, 110% FS > 10,000 psi.

Temperature Limits : -40 to 200°F (-40 to 93°C).

Size : 4-1/2″ (114.3 mm) dial face.

Process Connections : 1/4″ or 1/2″ NPT male.

Enclosure Rating : IP65 (NEMA 4).

Weight : 37 oz (1040 g).

Agency Approvals : Meets the technical requirements of EU Directive 2011/65/EU.

  • Liquid-free dampened movement minimizes effect of vibration and cost to maintain
  • Stainless steel socket and Bourdon tube permit use in chemical applications
  • High accuracy gage for applications requiring more precise measurement
  • skus that support vacuum to high pressure ranges provide a selection to meet specific applications
  • Specified with high ambient and process temperature ratings mean more robust uses and longer service-life

Catalog Pages: Series 765 Catalog Page
