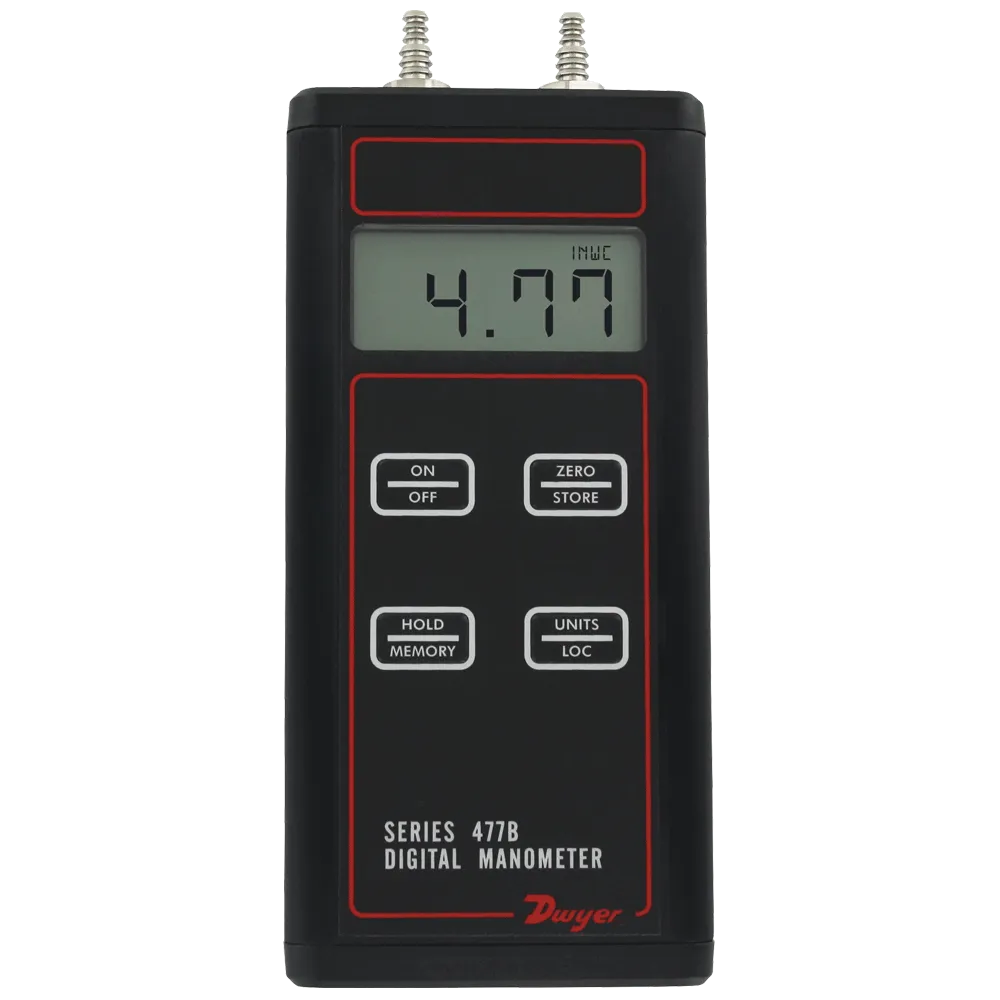

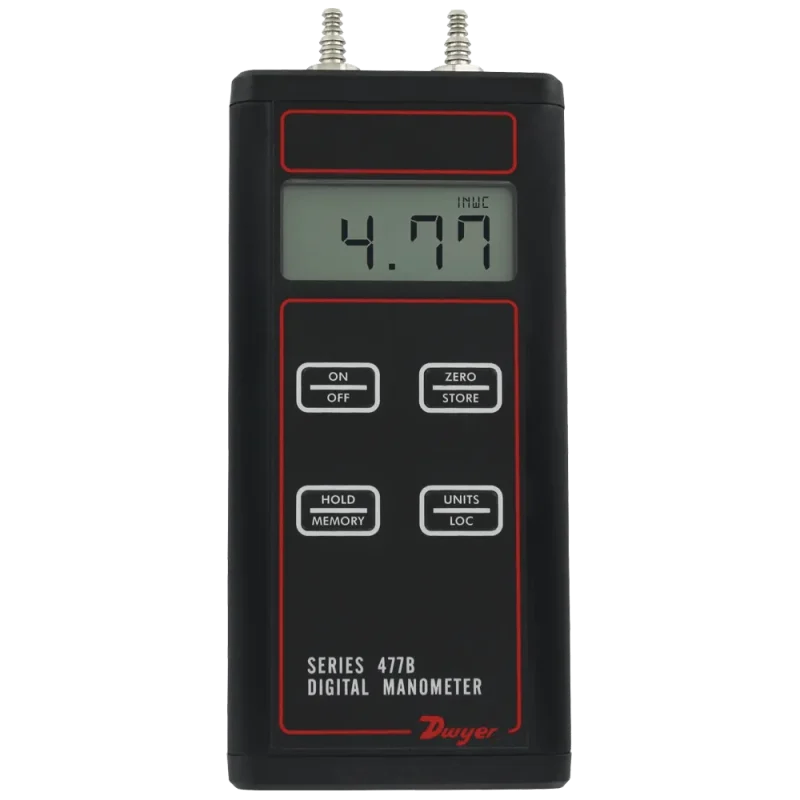

Dwyer Series 477B Handheld Digital Manometer

Part Number: Series 477B Categories: ,

Email Us: sales@mycelectric.com

The Dwyer Series 477B Handheld Digital Manometers are versatile, hand-held, battery operated manometers available in several basic ranges from 0-20 in w.c. up to 100 psi. All models measure either positive, negative or differential pressures with ±0.10% of full scale accuracy. You can select from up to seven common English and metric pressure units so conversions are not necessary. A memory function allows storage of up to 40 readings for later recall and a backlight provides auxiliary lighting for hard-to-see locations. Also standard are a hold feature plus both visual and audible overpressure alarms.

Product Applications

  • Lab calibration of other pressure instruments
  • Air velocity/air flow measurements in commercial buildings

Service : Air and compatible gases.

Wetted Parts : Consult factory.

Accuracy : ±0.10% of full scale from 60 to 78F° (15.6 to 25.6°C); ±1% of full scale from 32 to 60 and 78 to 104°F (0 to 15 .6 and 25.6 to 40°C).

Pressure Hysteresis : ±0.1% of full scale.

Pressure Limits : See chart on catalog page.

Temperature Limits : 0 to 140°F (-17.8 to 60°C).

Storage Temperature Limits : -4 to 176°F (-20 to 80°C).

Display : 4-digit LCD (.425″ H x .234″ W digits).

Resolution : See chart on catalog page.

Power Requirements : 9 volt alkaline battery. Battery included but not connected.

Connections : Two barbed connections for use with 1/8″ (3.18 mm) or 3/16″ (4.76 mm) I.D. tubing for 477B-1, 477B-2, 477B-3, 477B-4 and 477B-5 only. Two compression fittings for use with 1/8″ (3.18 mm) I.D. x 1/4″ (6.35 mm) O.D. tubing for 477B-6 and 477B-7 only.

Weight : 10.2 oz. (289 g).

Agency Approvals : CE.

  • Precise 0.1% FS accuracy provides four times better accuracy than most standard manometer/gages
  • Aluminum housing protects instrument against damage
  • 40 readings in internal memory reduces time to record data

Manual: Instruction Manual
Catalog Pages: Series 477B Catalog Page
