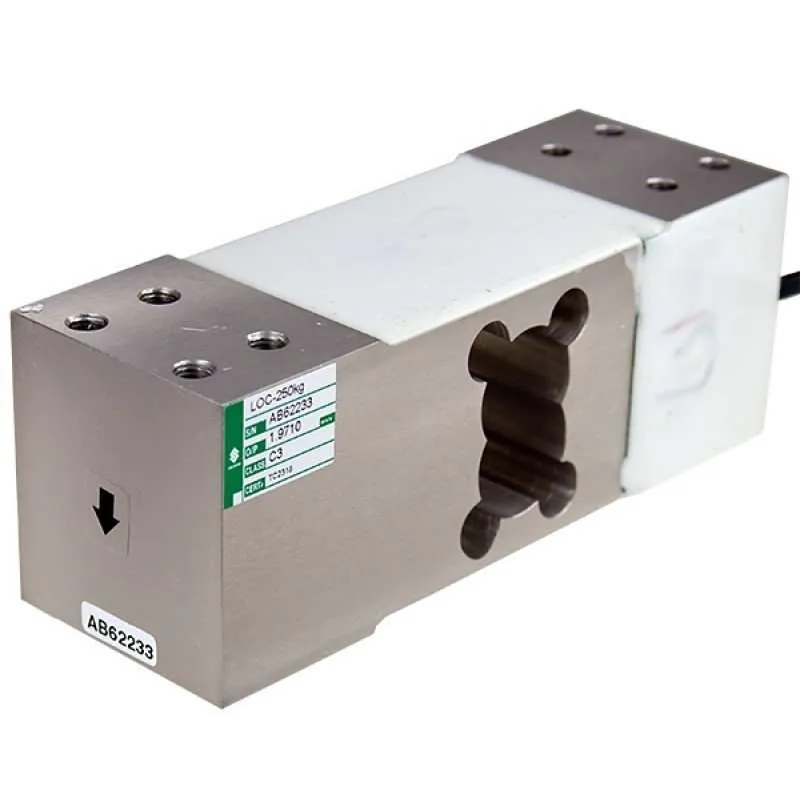

Celtron Low Profile Off-Center Single-Point Load Cell (LOC)

Celtron LOC Load Cell: Cost-Effective Precision for Scales and Weighing Systems

The Celtron LOC is a low-profile, off-center single-point load cell designed for applications requiring accuracy and reliability in a compact and cost-effective package. Its anodized aluminum construction ensures durability and optimal performance for diverse industrial and commercial weighing solutions.

Key Features:

• Capacity Range: Available from 5 kg to 1,000 kg to suit various operational needs.
• Durable and Compact: Constructed with anodized aluminum and IP66 environmental protection for resistance to moisture and humidity.
• Certifications:
  • NTEP Class III 5000S (5–500 kg)
  • OIML C3 (5–500 kg)
  • OIML C6 (500–1,000 kg)
• Platform Compatibility: Accommodates platforms up to 16″ x 24″ (40 cm x 60 cm).
• Optional FM Approval: Suitable for use in hazardous environments.

Applications:

• Platform scales (single load cell)
• Packaging machines
• Dosing and filling systems
• Belt and conveyor scales
• In-motion check weighers

Performance Highlights:

• Precision Measurement: Rated output of 2.0 mV/V with excellent non-linearity, hysteresis, and repeatability specifications.
• Temperature Adaptability: Operates efficiently from -20°C to +60°C, with a compensated range of -10°C to +40°C.
• Robust Overload Handling: Safe overload capacity of 150% and ultimate overload capacity of 200%.

The Celtron LOC load cell provides a cost-effective solution for scales of simple construction while ensuring high performance and reliability. Whether for platform or hanging scales, the LOC load cell delivers dependable results in demanding environments.
