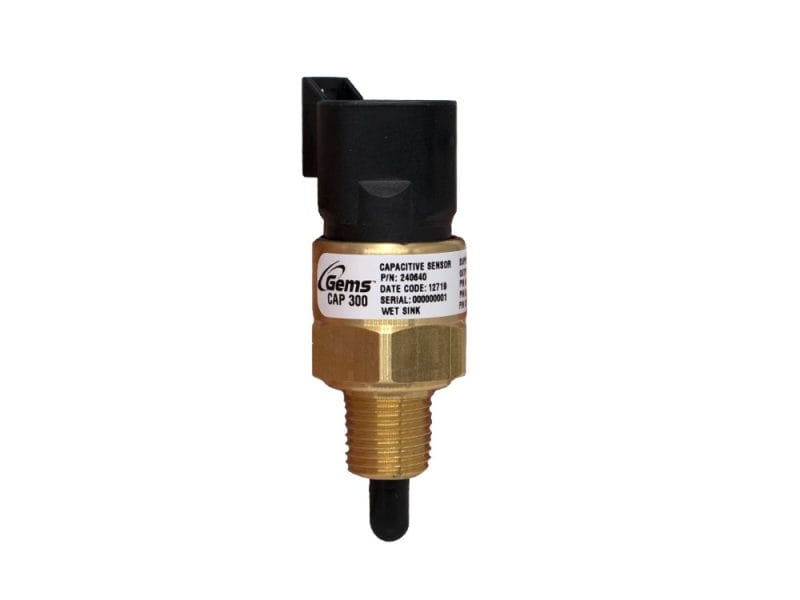

Gems Sensors CAP-300 Series Capacitance Level Sensor

Name: Gems Sensors CAP-300 Series Capacitance Level Sensor
Brand: Gems Sensors
SKU: Gems Sensors CAP-300 Series
Availability: InStock

SKU: Gems Sensors CAP-300 Series Categories: Capacitive Level Switches, Level Switches, Level Transmitters

sales@mycelectric.com WhatsApp Our Sales Team Follow Celectric's WhatsApp Channel

Brand: Gems Sensors

Request for price

Read more	Gems Sensors 244510	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244511	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type:Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244515	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244516	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244520	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244521	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244525	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244526	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244530	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244531	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244535	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244536	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/4"-18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244540	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244541	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244545	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244546	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244550	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244551	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244555	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244556	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244560	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244561	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244565	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 244566	Stem Material: Stainless Steel Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242970	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242971	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242975	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242976	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242980	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242981	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242985	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242986	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242990	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242991	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242995	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 242996	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-14 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240640	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240645	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240650	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240655	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240660	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240665	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240670	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240675	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240680	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240685	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240690	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240695	Stem Material: Brass Float Material: N/A Mounting Size: 1/4" - 18 NPT Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240700	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240705	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240710	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240715	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240720	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240725	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240730	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240735	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240740	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240745	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240750	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240755	Stem Material: Brass Float Material: N/A Mounting Size: 1/2"-20 per SAE J1926-3 Switch Type:Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240800	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240805	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240810	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240815	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240820	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240825	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type:Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240830	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240835	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240840	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240845	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240850	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240855	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.5 Stud End Per ISO6149-3 Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240900	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240905	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240910	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240915	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240920	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240925	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240930	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240935	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240940	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240945	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240950	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sinking output, 9-32 VDC, 30 ma max	Request for price
Read more	Gems Sensors 240955	Stem Material: Brass Float Material: N/A Mounting Size: M12x1.0-8g Switch Type: Open Collector sourcing output, 9-32 VDC, 30 ma max	Request for price

Gems CAP-300 Series, a capacitive level sensor engineered specifically for the most rugged aqueous applications. Designed to deliver exceptionally reliable single-point level monitoring, this versatile switch is an ideal OEM solution for demanding industrial environments. It remains reliable even in standby mode and features a sealed capacitor electrode that remains untouched by coolants.

Hardware Specifications

Housing Materials: Available in Brass or 316L Stainless Steel (Stainless steel features NSF-approved material for Food & Beverage applications).
Operating Temperature: -40°F to +257°F (-40°C to +125°C) for standard versions.
Operating Pressure: Safely withstands pressures up to 100 PSIG.
Supply Voltage & Output: Operates on 9 to 32 VDC with an open collector, sinking, or sourcing output (30mA max).
Electrical Connections: Choose between an integral 3-pin Deutsch connector, 18 AWG SXL flying leads, or a 36-inch PVC cable.

Versatile Industrial Applications

Reliable coolant monitoring.
Power generation equipment and commercial generators.
Off-highway vehicles and rail systems.
Medical and HVAC applications.
Food and Beverage processing.

Compact & Durable Build: Measuring just 2 inches (51 mm) in length, the sensor features a durable IP67 sealed design.
Advanced Coating Tolerance: Featuring Versaplast™ encapsulation, the probe tip easily tolerates coolant coating with little to no effect on capacitance measurement.
Slosh & Movement Resistance: For environments where fluid sloshing occurs or the reservoir’s attitude changes frequently, optional 5-second and 10-second actuation delays are available to prevent false readings
Maintenance-Free Mounting: Requiring nearly zero maintenance, the CAP-300 can be reliably mounted in any position.
