| Actuation Level | 1 3/32″ |
| Switch Operation | Normally Open (Reversible) |
| Min. Liquid | 0.75 |
| Stem Material | 316 Stainless Steel |
| Float Material | 316 Stainless Steel |
| Float Diameter | 2 1/16″ |
| Mounting Size | 1/4″ NPT Male |
| Mounting | Vertical |
| Switch Type | SPST (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 750 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 480 |
| Electrical Termination | 18 AWG, 24″ long, Polymeric leads |
| Wetted Materials | 316 Stainless Steel |
| Approvals | UL Recognized, CSA Listed, CE, ROHS |

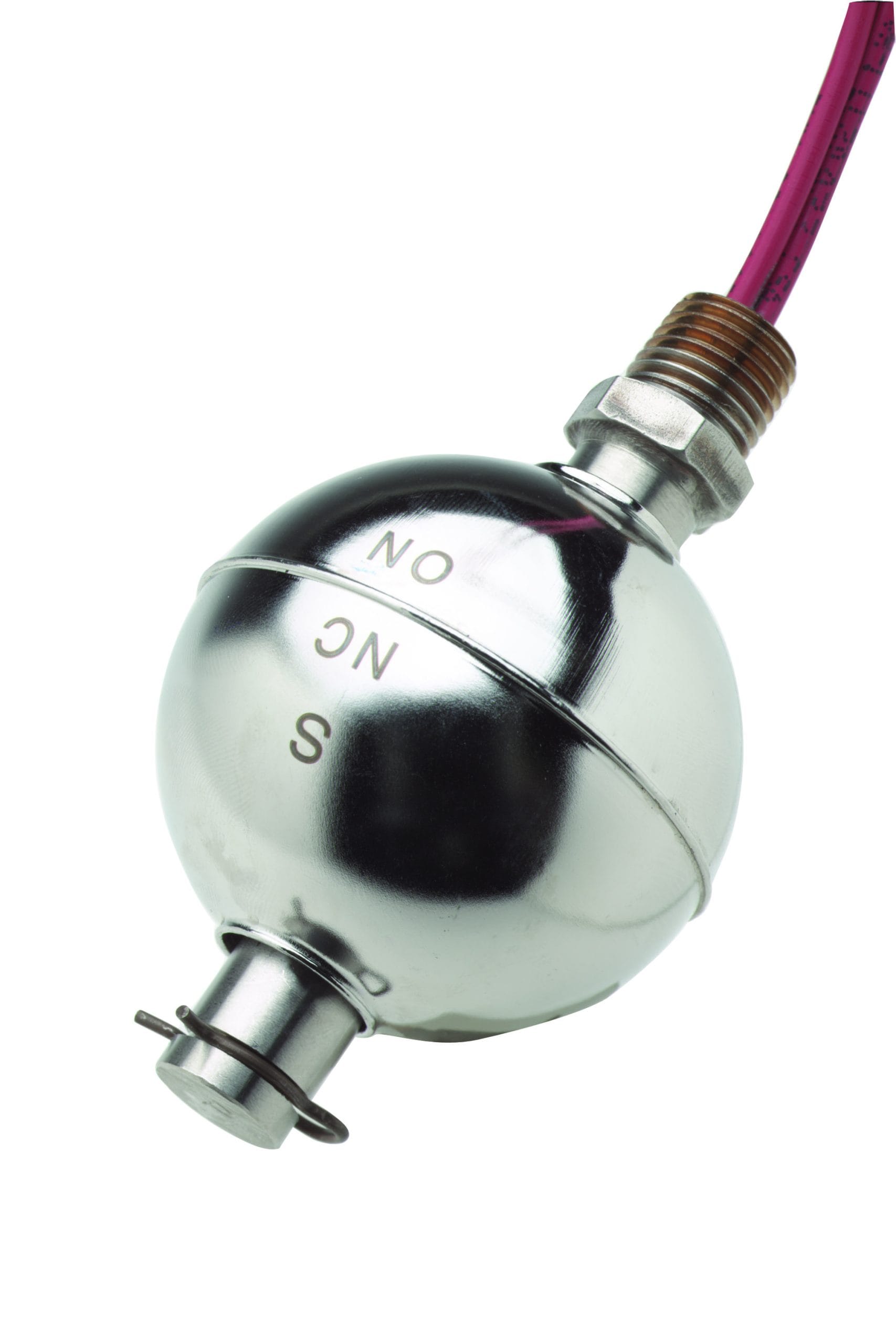

Gems LS-1950 Series Single-Point Float Level Switch
Gems 79999
Instruction Manual: Gems_Reed-Switch-Protection_Manual
Datasheet: Gems_LS-1950-Datasheet
Instruction Manual: Gems_LS-1700_Manual
