| Actuation Level | 7/16″ |
| Switch Operation | Normally Open (Reversible) |
| Min. Liquid | 0.95 |
| Stem Material | Polypropylene |
| Float Material | Polypropylene (Solid) |
| Float Diameter | 3/4″ |
| Mounting Size | 1/8″ NPT Male |
| Mounting | Vertical |
| Switch Type | SPST (20 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 15 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 212 |
| Electrical Termination | 22 AWG, 24-16″ long PVC leads |
| Wetted Materials | Polypropylene, Kynar, Ceramic Magnet |
| Approvals | UL Recognized, CSA Listed, CE |

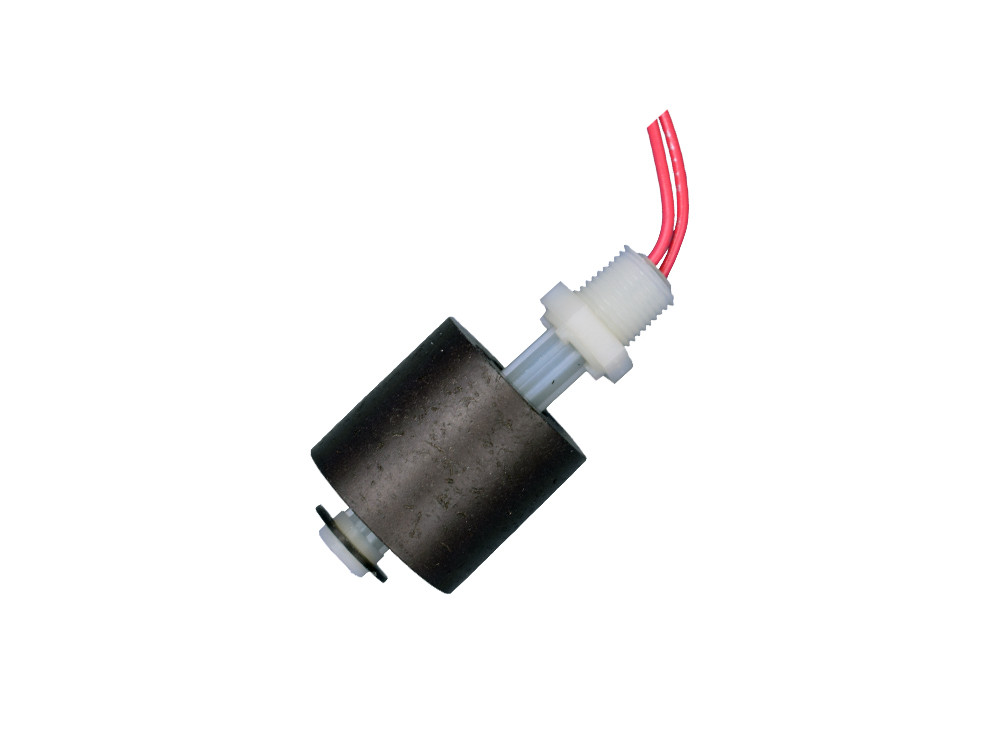

Gems LS-3 Series Single-Point Level Switch
Gems 201540
Datasheet: Gems_LS3-Datasheet
Reed Switch Protection Manual: Reed Switch Protection
Instruction Manual: Gems_LS-1700_Manual
Reed Switch Protection Manual: Reed Switch Protection
Instruction Manual: Gems_LS-1700_Manual
