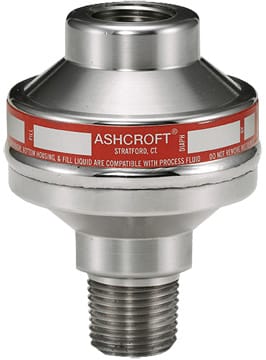

Ashcroft Type 510 / 511 Diaphragm Seals
The Ashcroft Type 510 and 511 diaphragm seals are engineered for durability and reliability, featuring a fully welded, lightweight design suitable for continuous duty applications. These seals are available with a standard pressure rating of 1500 psi, with an optional upgrade to 5000 psi for more demanding environments.
Key Features
- Material: Constructed from 316L stainless steel for enhanced corrosion resistance.
- Accuracy: Enhances the full-scale accuracy of the connected instrument by 0.5%.
- Compact Design: Small enough for installation in confined spaces while providing adequate displacement for various instrumentation needs.
- Tamper-Proof: All-welded design prevents leakage of process media, ensuring safety and reliability.
Applications
The Ashcroft Type 510 and 511 diaphragm seals are ideal for a range of applications, including:
- Corrosive processes
- Control of fugitive emissions
- High-temperature processes
- Processes with suspended solids
- Limited installation space
- Scenarios requiring male process connections
These diaphragm seals are designed to meet the rigorous demands of various industrial applications, ensuring optimal performance and longevity.
