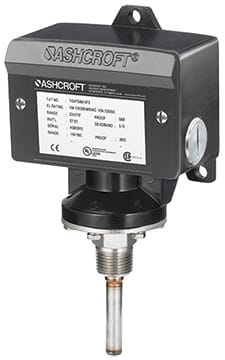

Ashcroft B-Series Temperature Switches
The Ashcroft B-Series temperature switches are designed with a SAMA Class II vapor pressure thermal system, ensuring rapid and precise responses to changes in process temperature while minimizing the impact of ambient temperature variations. This efficiency is achieved through the inherent relationship between temperature and pressure as dictated by vapor pressure laws.
Key Features
- Quick and accurate response to temperature changes
- Negligible effects from ambient temperature
- Available in various sensing bulb and armored capillary lengths
- Compact bulb sizes for easy and cost-effective installation
Performance Specifications
All models of the Ashcroft B-Series temperature switches offer:
- ±1.0% of span setpoint repeatability
- High overtemperature ratings
- Robust performance in environments with shock and vibration
For optimal performance, it is recommended to pair these switches with Ashcroft thermowells, which provide bulb protection and facilitate easier installation and maintenance.
Bulb Specifications
The temperature switches are compatible with 3/8 inch nominal bore thermowells, featuring bulbs with a sensitive portion length of 2 inches. These bulbs can be utilized with thermowells that have a 2.5 inch “U” dimension or longer.
To ensure maximum accuracy when measuring liquid temperatures, the thermowell’s “U” dimension should allow for complete immersion of the sensitive portion plus an additional 1 inch. For gas temperature measurements, an extra 3 inches of immersion is recommended.
