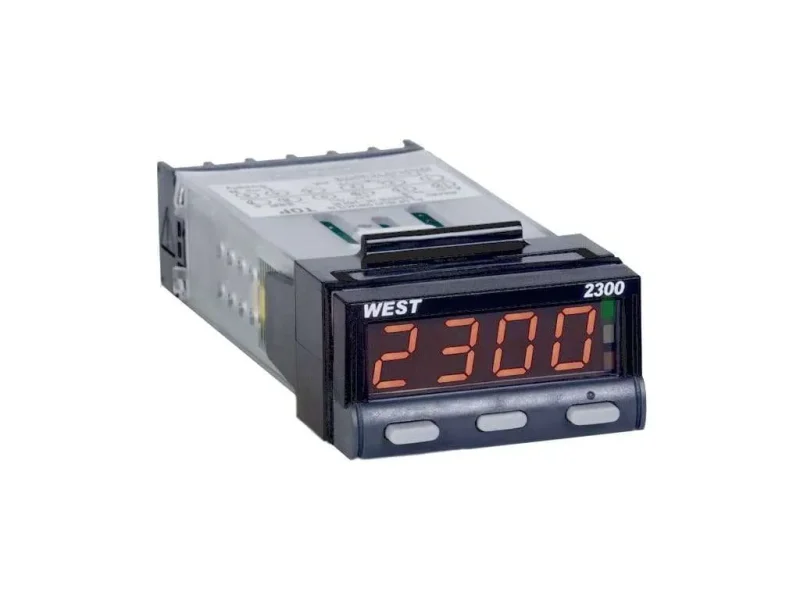

West N2300 Single Loop Controller

Part Number: N2301Y Category:

Email Us: sales@mycelectric.com

The West N2300 offers real flexibility as it can be used as a controller or an indicator.

The instrument has the largest red or green digital display in a 1/32 DIN package. In addition to the red or green display, the N2300 benefits from three additional multi-color LEDs to indicate a process, alarm, and configuration status.

The large, tactile rubberized keys provide a more practical human interface complemented with a specially developed hands-free PID tuning algorithm, Easy-Tune, which continuously monitors and improves control. Alternatively, N2300 can manually fine-tune the instrument for a specific application. The N2300 indicator has up to two outputs (relay or solid-state driver) for alarm. The controller version can have an additional relay or RS232 serial communications.

  • Simple straight forward operation for easy setup
  • Largest 4 digit red/green digital display in a 1/32 DIN package
  • PID control for (auto-tuning) hands-free operation with manual override tune capability for specialized applications
  • Solid state relay SSR for primary control and alarming
  • Optional second alarm relay (option) or RS-485 communication
Product Category:Single Loop controller
Dimensions and size:25mm x 49mm x 100mm (HxWxD), 1/32 DIN Cut out
Primary Input Type:Thermocouple (J, T, K, N, B, R, S), PT100 3-wire, DC linear mA/mVdc (volts DC not supported)
Other Inputs:None
Output Type:Relay, SSR Driver (SSd)
Max. Number of Outputs:3
Control Type:PID, ON/OFF, Alarm
Power Supply:

90 to 264V AC 50/60Hz

12-24V AC 50/60Hz

12-30V DC

Communications:RS485 Serial (Modbus® protocol)
Panel Sealing:IP65
Certifications:CE, cULus

Datasheet: West_N2300-Datasheet-US
Instruction Manual: West_2300-Operator-Manual-English
