- Accuracy: ±0.3% of FS + 1 digit
- Sampling Period: 0.25 sec
- 2 event outputs installed as standard
- Space-saving design with panel depth 62 ~ 65mm

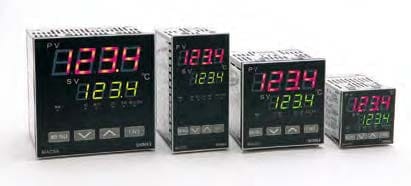

- Multiple sizes available: 96x96mm, 48x96mm, 72x72mm, 48x48mm
- Output Types: Contact, Voltage Pulse and DC Current
- Additional Functions: Event output, Control output 2
Shimax MAC5 Digital PID Temperature Controller (Universal Input, 4-20mA)
Shimax MAC5 Series: Compact Digital PID Controller (62mm Depth)
The Shimax MAC5 Series is a space-saving digital temperature controller designed for plastic extrusion, packaging, and food processing lines where panel depth is limited.
At only 62mm deep, this controller fits into tight control cabinets while delivering professional PID control accuracy (±0.25%). It features Universal Input (Thermocouple/RTD) and comes standard with 2 event outputs, making it the versatile choice for replacing older legacy controllers in Malaysia.
| Specification | Value |
| Control Method | PID with Auto-Tuning |
| Input Type | Universal (Thermocouple, RTD, Voltage, Current) |
| Accuracy | ±0.25% FS + 1 digit |
| Sampling Period | 0.25 seconds |
| Panel Depth | 62mm – 65mm (Space Saving) |
| Outputs | Relay Contact, SSR Pulse, 4-20mA Current |
| Power Supply | 90 – 264V AC |
| Sizes Available | 48×48 (MAC5D), 48×96 (MAC5B), 72×72 (MAC5C), 96×96 (MAC5A) |
Data Sheet: Shimax MAC5A Controller Datasheet
Instruction Manual: Shimax MAC5 Instruction Manual
