| Parameter | Value |
|---|---|
| Range | 6′ to 26.2′ (1.8 m to 8 m) |
| Accuracy | ± 0.2% of span in air |
| Resolution | 0.039″ (1 mm) |
| Beam Width | 3″ (7.6 cm) dia. |
| Dead Band | 8″ (20 cm) |
| Display Type | LCD, 6-digit |
| Display Units | Inch, cm or percent |
| Display Mode | Air gap or liquid height |
| Memory | Non-volatile |
| Supply Voltage | 12-28 VDC |
| Loop Resistance | 500 Ohms @ 24 VDC |
| Signal Output | 4-20 mA, two-wire |
| Signal Invert | 4-20 mA or 20-4 mA |
| Calibration | Push button |
| Fail-Safety | Selectable 4 mA, 20 mA, 21 mA, 22 mA or hold |
| Process Temp. | -7°F to +140°F (-20°C to +71°C) |
| Temp. Comp. | Automatic |
| Electronics Temp. | -40°F to +160°F (-40°C to +71°C) |
| Pressure | 30 PSI (2 bar) @ 25°C, derated @ 1.667 PSI (0.113 bar) per °C above 25°C |
| Enclosure Rating | NEMA 4X (IP65) |
| Enclosure Vent | Water tight membrane |
| Enclosure Material | PC/ABS FR |
| Trans. Material | PVDF |
| Process Mount | 2″ NPT (2″ G) |
| Mount. Gasket | Viton® |
| Conduit Entrance | Dual, 1/2″ NPT |
| Classification | General Purpose |
| CE Compliance | EN 61326 EMC |

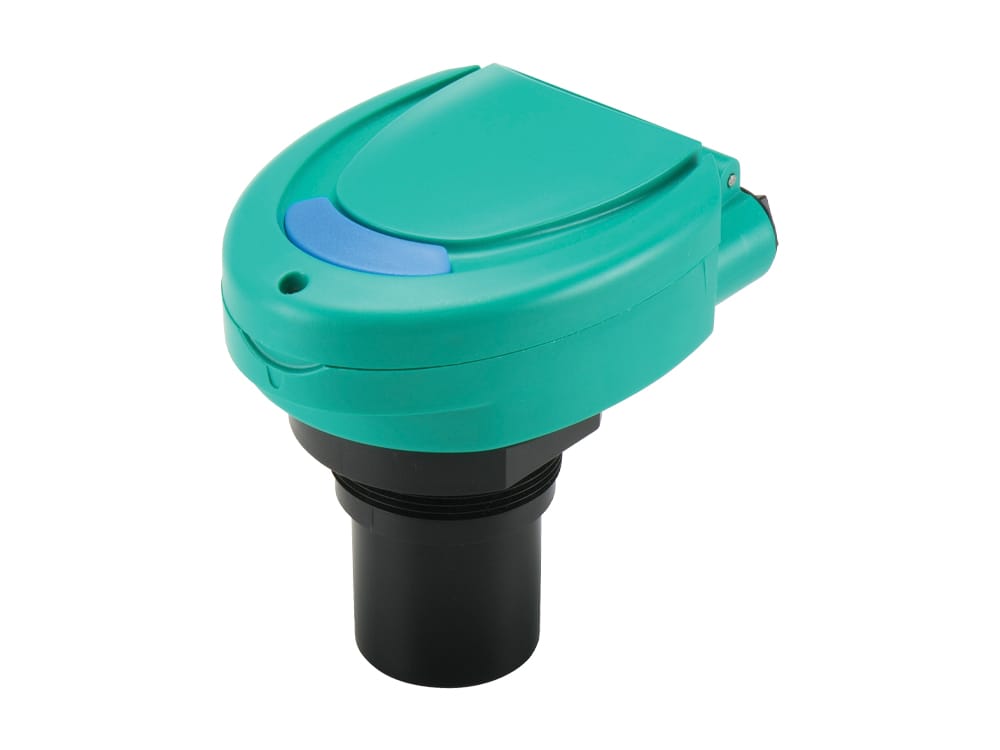

Gems UCL-520 Ultrasonic Continuous Level Sensor
Gems Sensors 225200
Datasheet: Gems_UCL-520-Datasheet
Instruction Manual: Gems_UCL-520_Manual
