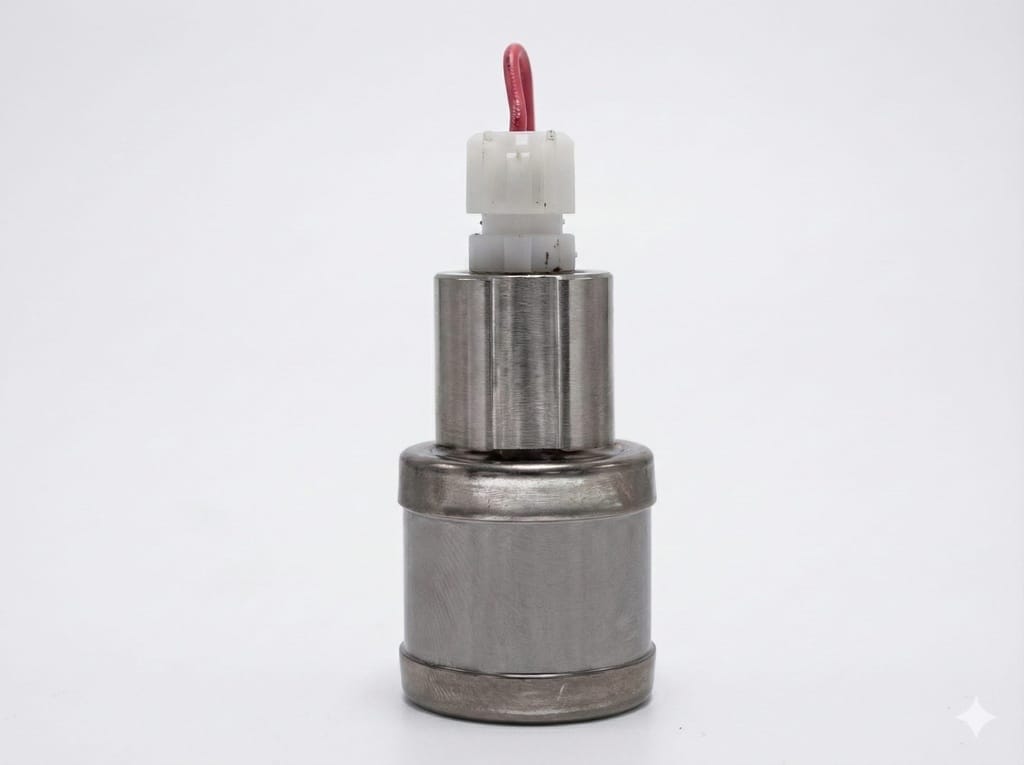

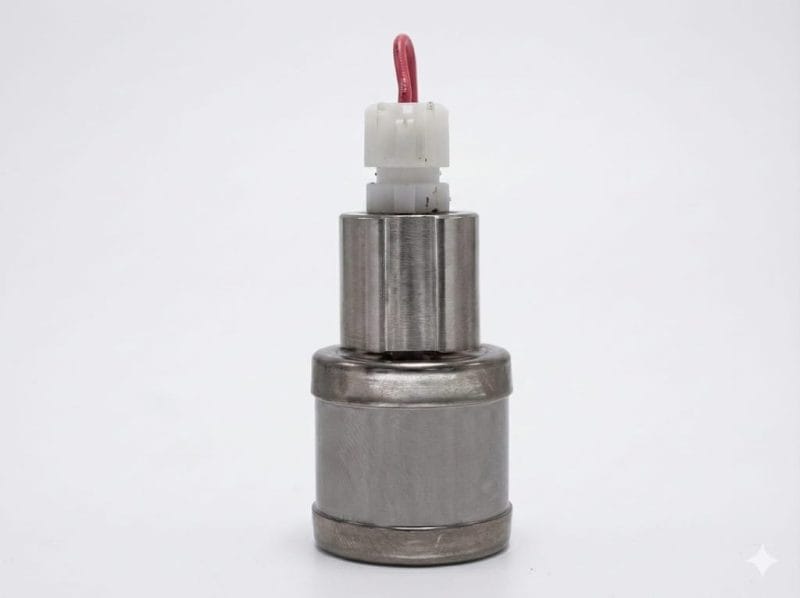

Gems Sensors LS-750 Series Single-Point Level Switch
Gems Sensors 197433
| Actuation Level | 3/4″ |
| Switch Operation | Normally Closed (Non-Reversible) |
| Min. Liquid | 0.65 |
| Stem Material | 316 Stainless Steel |
| Float Material | 316 Stainless Steel |
| Float Diameter | 1.17″ |
| Mounting Size | Suspended |
| Mounting | Vertical |
| Switch Type | SPST (10 VA) |
| Input | N/A |
| Output | N/A |
| Maximum Pressure (PSI) | 375 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 212 |
| Electrical Termination | 22 AWG, 2 Conductor, 25′, PVC Cable |
| Wetted Materials | 316 Stainless Steel, PVDF, Viton |
| Approvals | UL Recognized, CSA Listed, CE |
