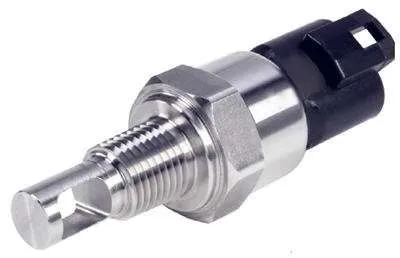

Gems XLS-1 Ultrasonic Level Sensor
Gems Sensors 247795
| Actuation Level | N/A |
| Switch Operation | Dry Sink |
| Min. Liquid | N/A |
| Stem Material | Stainless Steel |
| Float Material | N/A |
| Float Diameter | N/A |
| Mounting Size | 1/2″-14 NPT |
| Mounting | Horizontal |
| Switch Type | TTL/CMOS Compatible |
| Input | 5-28 VDC |
| Output | Open Collector Sink 30 Ma @ 30 VDC |
| Maximum Pressure (PSI) | 250 |
| Minimum Temperature (°F) | -40 |
| Maximum Temperature (°F) | 257 |
| Electrical Termination | 12″-14″ PVC Cable |
| Wetted Materials | 316L Stainless Steel, EPDM. 30% Glass Filled Polyester |
| Approvals | CE, RoHS, UL/cIL Recognized |
