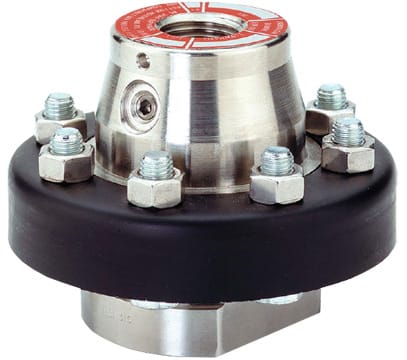

Ashcroft Type 100 Series Diaphragm Seals
The Ashcroft Type 100 Series diaphragm seals offer a versatile solution designed to meet a wide range of application and installation needs. These seals are engineered for compatibility with all Ashcroft bottom housings, allowing for easy interchangeability of the top housing and diaphragm capsule.
Key Features
- Interchangeable Components: The top housing and diaphragm capsule can be swapped with any Ashcroft bottom housing.
- Standard Fill/Bleed Connection: This feature enables simultaneous filling of the seal and instrument after evacuation, ensuring efficient operation.
- Durable Sealing: A Viton O-ring, compatible with all standard fill fluids, along with a Teflon back-up ring, provides a reliable seal between the diaphragm capsule and the top housing.
- Leak-tight Design: A thin Teflon PTFE gasket between the diaphragm and bottom housing guarantees a corrosion-resistant seal, even under high pressure conditions.
Applications
The Ashcroft Type 100 Series Diaphragm Seals are suitable for various applications, including:
- High-temperature processes
- Corrosive environments
- Process isolation for enhanced safety
- Handling suspended solids
- Sanitary connections
- Minimizing process dead leg
- Facilitating cleaning between batches
These features make the Ashcroft Type 100 Series an ideal choice for industries requiring reliable and efficient diaphragm seals.
