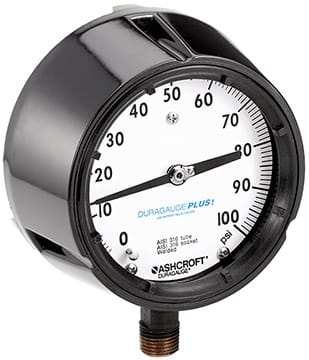

Ashcroft 1279 Duragauge Pressure Gauge

The Ashcroft 1279 Duragauge is recognized as the premier production gauge for industrial applications that demand precise pressure readings. This versatile product line features a diverse selection of case styles, Bourdon tubes, and pressure ranges tailored to meet various application requirements.

Key Features

  • Pressure Range: Available from vacuum to 30,000 psi, including compound ranges.
  • Durable Construction: Solid front case made from phenolic resin, ensuring excellent chemical resistance and fire safety, complete with a blow-out back.
  • Field Convertible: Can be easily converted to hermetically sealed or liquid-filled styles.
  • Material Options: Various socket and Bourdon tube materials are available to suit different environments.
  • Enhanced Longevity: Features a micrometer adjustable pointer and moving parts constructed from 400 series stainless steel, designed for superior wear resistance. A Teflon-coated pinion further extends the gauge’s lifespan.

Receiver Gauge Family

The Ashcroft 1279 Duragauge is part of the receiver gauge family, which is utilized alongside pneumatic transmitters to display pressure, temperature, flow, and other process parameters through proportional variations in air pressure.

PLUS! Performance Option

With the PLUS! performance option, the Ashcroft 1279 Duragauge delivers liquid-filled performance in a dry gauge format, effectively combating vibration and pulsations without the complications associated with liquid-filled gauges.

Versatile Applications

Thanks to the extensive combinations of components available in the Duragauge line, over ten million variations can be configured to meet the needs of various industries, including:

  • Process
  • Power
  • Nuclear
  • Aerospace
  • Cryogenics

Choose the Ashcroft 1279 Duragauge for reliable and precise pressure measurement in your industrial applications.

Features

  • ±0.5% full scale (Grade 2A, ASME B40.100) accuracy
  • VAC, compound to 30,000 psi pressure range
  • 4.5in dial size
  • IP54 dry case protection
  • IP65 liquid filled or hermetically sealed case protection
  • 1/4 or 1/2in NPT connection size
  • Lower or back connection location
  • Micrometer adjustable pointer
  • Phenolic case for superior chemical resistance and fire safety
  • Solid-front case design with blow-out back for safety
  • Need it in a hurry?
    • Ashcroft Gold Service guarantees shipping in five days or less
    • Call us for additional details
