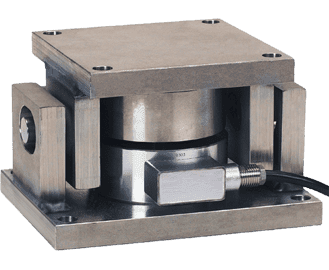

Anderson-Negele LD3xiC Load Disc Compression Weighing Module

SKU: LD3xiC Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Brand:

The High-Precision Process Expert: Up to 0.03% accuracy in dynamic content control through weight measurement, extremely robust design with cage

The LD3xiC Load Disc “Heavy Duty” weighing systems dynamically measure the content level based on the container weight and precisely indicate even the smallest changes. The sensor is integrated in an extremely robust base housing, which compensates for e.g. static imbalances of the vessels and thermal expansion. This makes LD3xiC ideal for process, stirring and mixing vessels in food and industrial applications

    • Reliable, high-precision measurement even under alternating loads: Measurement accuracy up to 0.03% at loads from 5,000 to 10,000 kg
    • Extremely robust: The sensor is integrated in a cage that compensates for movement and imbalances
    • Flexible: Also for interchangeable vessels, e.g. ingredient containers
    • Always precise: Unlike level meters, thermal or density changes do not affect the measurement result
    • Can be relied upon: Kistler-Morse pioneered load cell technology. This is still the standard for load and content measurement in many industrial sectors

Technical Specification









Insertion lengthStainless steel 1.4542 (17-4 PH 900), brushed surface
Measuring range5.000…10.000 kg
Accuracy0,03 % of rated load (=3,0 kg with rated load 10.000 kg)
Temperature range process-10…40 °C
Communication5…15 V DC Full-Bridge
The values shown are the performance limits within the product line. The product-specific data for each individual configuration can be obtained from the product information
