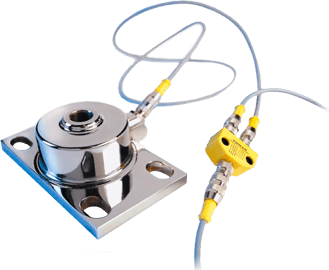

Anderson-Negele LD360s Load Disc Compression Weighing Module

SKU: LD360s Category:

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084
WhatsApp Channel: Follow Our WhatsApp Channel

Brand:

The Hygienic Specialist: Dynamic content measurement through precise weight measurement, robust and polished design for all hygienic applications

The LD360s Load Disc weighing systems dynamically measure the vessel content based on the container weight and precisely indicate even the smallest changes. They are firmly bolted between the container feet and the foundation. They thus enable highly accurate content monitoring in all types of process or storage containers, including, for example, agitators. Due to their compact, hygienic design, they can be cleaned according to sanitary requirements in food or pharmaceutical applications.

  • Reliable hygienic measurement: Polished surface and sanitary design with no critical gaps or poorly cleanable openings
  • Unique mounting versatility: Various, three-dimensional adaptive mounting systems compensate for unevenness and movements of the vessel
  • Flexible: Also for interchangeable vessels, e.g. ingredient containers
  • Always precise: Unlike other level sensors, thermal or density changes do not affect the measurement result
  • Reliable: Kistler-Morse pioneered load cell technology. This is still the standard for load and content measurement in many industries

Technical Specification









Wetted materialStainless steel 1.4542 (17-4 PH 900), polished surface
Measuring range454…11.340 kg
Accuracy0,08 % of rated load (=0,36 kg at rated load 450 kg)
Temperature range process-18…38 °C
Communication10…30 V DC
The values shown are the performance limits within the product line. The product-specific data for each individual configuration can be obtained from the product information
