In industrial fluid handling, the difference between a profitable batch and a wasted one is often less than 1%. While many flow meters are “accurate,” the system accuracy often fails due to mechanical delays and poor configuration.
If you are struggling with inconsistent volumes, follow these five technical steps to reach a +/-1% error margin.
1. Account for Valve “Overrun”
When a batch controller signals a valve to close, the fluid doesn’t stop instantly. The momentum of the fluid and the closing time of the valve cause “overrun.”

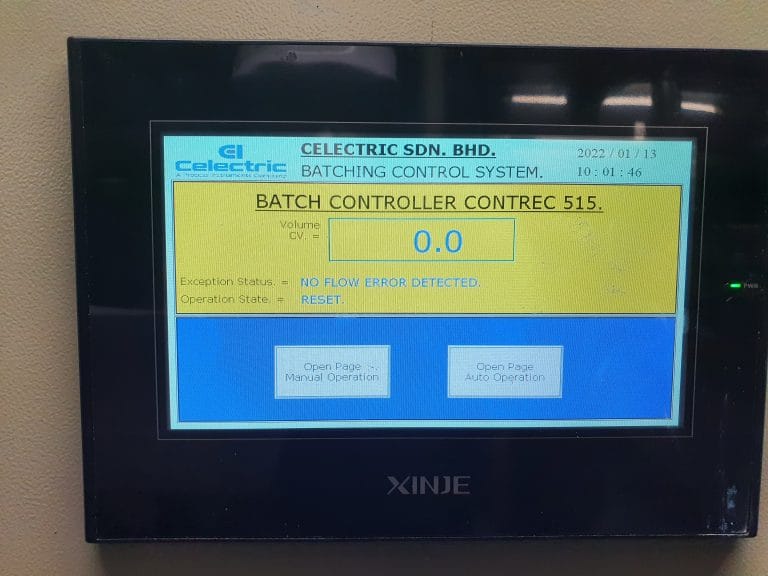

The Fix: Use a controller like the Contrec 515-BC01 that features Automatic Overrun Compensation. The device “learns” how much extra fluid passes after the stop signal and automatically adjusts the next batch’s shut-off point.
2. Implement Two-Stage Shut-off
Stopping a high-velocity flow instantly causes “water hammer” and massive inaccuracies.
The Fix: Use Two-Stage Control. The controller opens a large valve for the “bulk” of the flow, then switches to a small “dribble” valve for the last 5–10% of the batch. This slower speed allows for a surgical, precise stop.
3. Use Multi-Point K-Factor Linearization
Most flow meters have a “K-Factor” (pulses per liter) that changes depending on how fast the fluid is moving. If you only use one K-Factor, your accuracy will drift as flow rates fluctuate.
The Fix: Select a batch controller that supports 10-point linearization. By inputting the meter’s performance at different speeds, the controller calculates the exact volume regardless of flow velocity.
4. Compensate for Temperature and Viscosity
Fluids expand and contract. 1000 liters of oil at 20°C is not the same mass as 1000 liters at 50°C.
The Fix: Ensure your system includes a temperature probe. A sophisticated batch controller will perform real-time thermal compensation to ensure the “Corrected Volume” remains within that +/-1% window.
5. Ensure Signal Integrity (Pulse Filtering)
In industrial plants, electrical noise from motors can create “ghost pulses,” making the controller think more fluid has passed than it actually has.
The Fix: Use shielded cabling and a controller with input signal filtering. This ensures that only the actual flow signal is counted.
