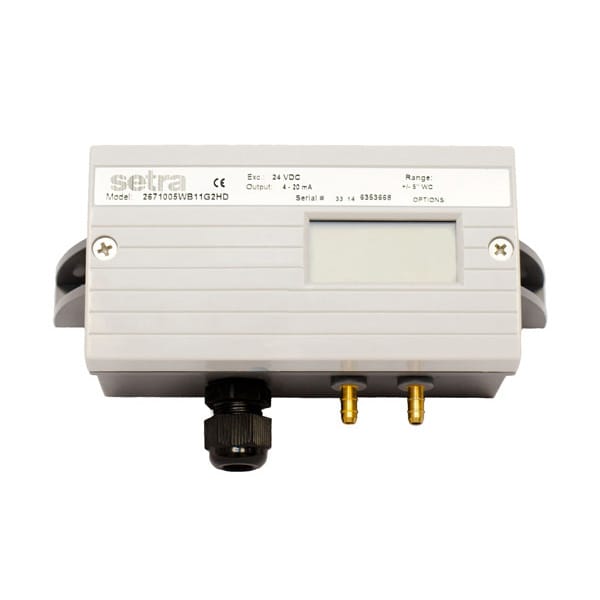

Setra 267 Very Low Differential Pressure Transducer

Part Number: Setra 267 Categories: , ,

Email Us: sales@mycelectric.com
WhatsApp Us: +6016-551 9084

  • 0.01” W.C. up to 100” W.C. Pressure Ranges
  • Optional 3.5 Digit LCD Display w/ 0.5% FS Accuracy
  • NEMA 4 Rated Housing
  • PG-9, PG-13 or Conduit Electrical Termination
  • Integral Static Pressure Probe
  • 24 VAC or 24 VDC Excitation
  • Meets CE Conformance Standards

The Setra 267 is a highly adaptable and configurable differential pressure transducer designed to cater to the specific requirements of various applications. With accuracy options ranging from ±0.25%, 0.5%, to ±1% FS, and pressure ranges spanning from 0.1″ W.C. to 100″ W.C., the Model 267 offers exceptional flexibility and precision in measuring differential pressure.

Key Features:

  • Wide measurement range from 25pa to 7000Pa
  • Optional LCD digital display for convenient readout
  • High accuracy options of ±0.5% FS or ±0.25% FS (selected)
  • Robust NEMA 4 enclosure for durability and protection
  • Multiple cable clamp and conduit interface options (PG-9, PG-13.5) for easy installation
  • Comprehensive set of static pressure probes for thorough monitoring
  • Compatible with both 24 VAC and 24 VDC excitation
  • Compliance with CE standards

Applications:

  • HVAC systems for monitoring and control
  • Energy management systems for efficient resource utilization
  • VAV (Variable Air Volume) and fan control
  • Environmental pollution control
  • Clean engineering environments requiring precise pressure control
  • Oven pressurization and furnace ventilation control
  • Monitoring of natural gas and gas pipeline networks
  • Ventilation monitoring in downhole applications
  • Medical instruments and equipment requiring accurate pressure measurement

The Setra 267 delivers reliable and precise differential pressure measurement across a wide range of applications, making it a versatile choice for industries that prioritize high performance and customization options. With its extensive features and exceptional accuracy, the Setra 267 ensures optimal performance and enhanced control in various critical environments.

Data Sheet: Setra Model 267 Data Sheet
User Manual: Setra Model 267 Operating Instructions
