Model: PD8-6262-7H0
Product Type: Explosion-Proof Dual Input Flow Rate/Totalizer
Input: Current (4-20 mA), Dual Inputs, Voltage (0-10 V)
Output Options: None
Power: 12-24 VDC/VAC
Approvals: ATEX (FP), CE, CSA (XP), FM (XP), IEC (FP)
Transmitter Power: 24 VDC @ 25 mA
Display Category: LED, Dual Line, Sunlight Readable
Display: SunBright, 0.6″, Dual Line, 6 Digits, Red LED
Warranty: 3 years
Product Series: ProtEX MAX
Product Family: PD8-6262
Product category: Explosion-Proof, Field Mounted Indicators
Product Application: Flow Rate Totalizer, Hazardous Area

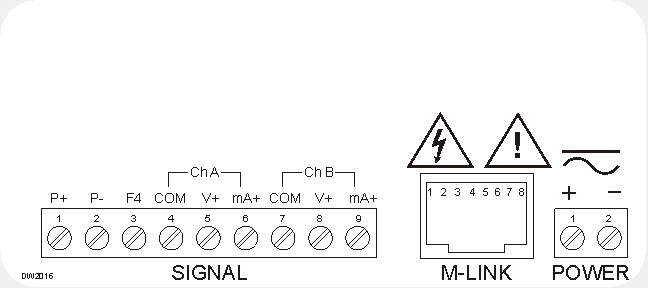

Wiring Diagram:
