Model: PD8-6000-6H7
Product Type: Explosion-Proof Process Meter
Input: Current (4-20 mA), Voltage (0-10 V)
Output Options: 4 Relays & 4-20 mA Output
Power: 85-265 VAC, 90-265 VDC
Approvals: ATEX (FP), CE, CSA (XP), FM (XP), IEC (FP)
Transmitter Power: 24 VDC @ 25 mA + 24 VDC @ 25 mA
Display Category: LED, Dual Line, Sunlight Readable
Display: SunBright, 0.6″, Dual Line, 6 Digits, Red LED
Warranty: 3 years
Product Series: ProtEX MAX
Product Family: PD8-6000
Product category: Explosion-Proof, Field Mounted Indicators
Product Application: Level, Pressure, Process, Hazardous Area, Pump Control

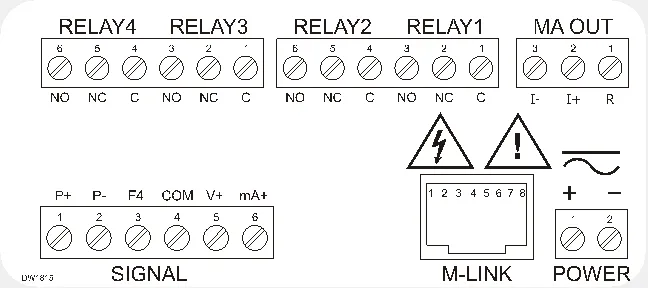

Wiring Diagram:
